1-1658622-3 | AMP

Socket header, 44 pole, pitch 2.54 mm, straight, black, 1-1658622-3

Order No.: 36P5475
EAN: 4099889943634
MPN:
1-1658622-3
Series: AMP-LATCH

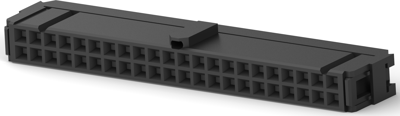

1-1658622-3 AMP PCB Connection Systems Image 1

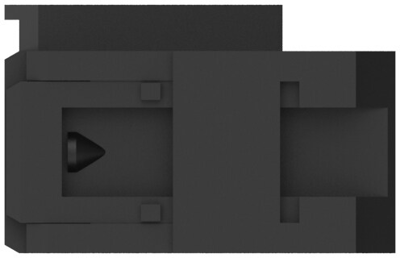

1-1658622-3 AMP PCB Connection Systems Image 2

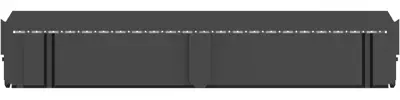

1-1658622-3 AMP PCB Connection Systems Image 3
1-1658622-3 AMP PCB Connection Systems Image 4
1-1658622-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.2606 € *
Available: 0 pcs.
Available in 5 Days: 29,500 pcs.
Leadtime: 15 Weeks **
Total Price:
326.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
3.2606 €

PCB Connection System, 1-1658622-3, AMP

Wire-to-Board, Wire & Cable, Vertical, 44 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 44
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Anschluss Leiterplattenanschluss
Anzahl der Reihen 2
Ausführung Buchsenleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Buchse
Kontaktoberfläche vergoldet
Nennspannung 250 V
Nennstrom 1 A
Orientierung gerade
Polzahl 44-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
