1-172169-9 | AMP

Socket header, 9 pole, pitch 4.2 mm, straight, black, 1-172169-9

Order No.: 34P9591
EAN: 4099889920413
MPN:
1-172169-9
AMP

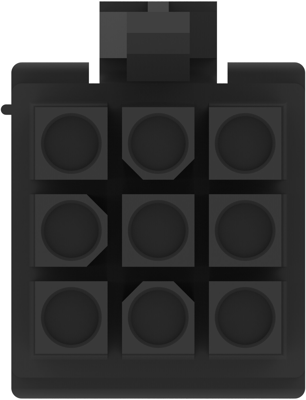

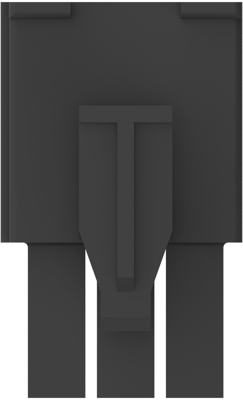

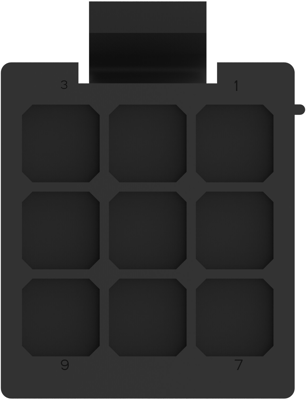

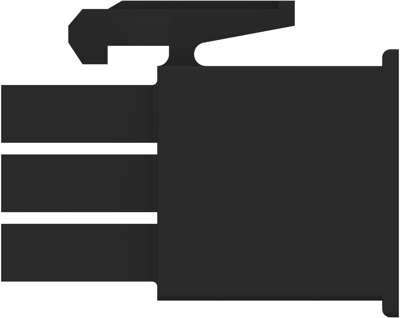

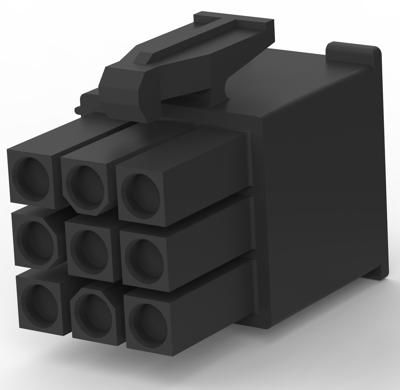

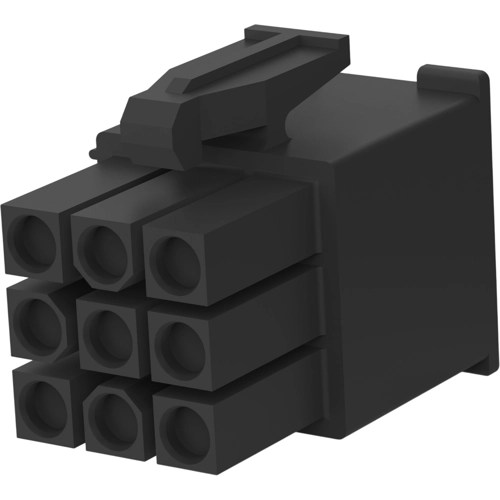

1-172169-9 AMP PCB Connection Systems Image 1
1-172169-9 AMP PCB Connection Systems Image 2
1-172169-9 AMP PCB Connection Systems Image 3
1-172169-9 AMP PCB Connection Systems Image 4
1-172169-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Available in 5 Days: 88,585 pcs.
Leadtime: 18 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
150 pcs.
0.6545 €
1400 pcs.
0.5831 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-172169-9, AMP

Wire-to-Wire, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: black
  • Number of positions: 9
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Connection crimp connection
Number of rows 3
Version socket header
Additional parts unequipped
Colour black
Contact type socket
Rated voltage 600 V
Orientation straight
Pin number 9 pole
Grid 4.2 mm
Logistics
Country of origin TW
Customs tariff number 85369001
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
