1-1747145-7 | AMP

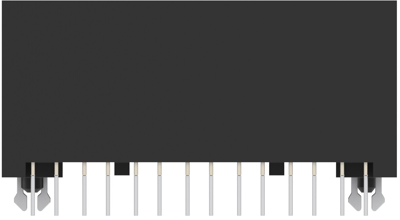

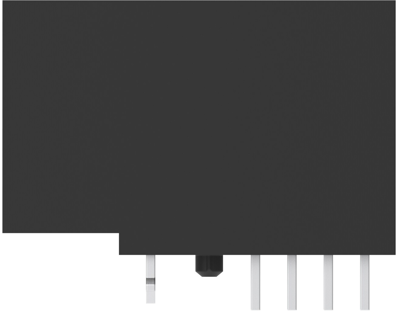

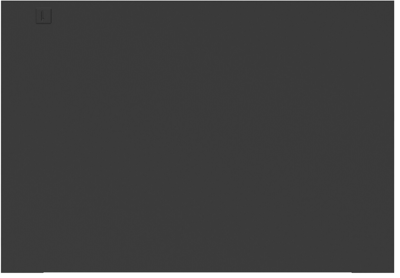

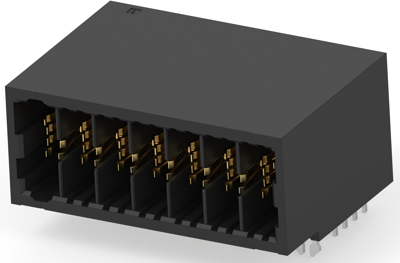

Pin header, 7 pole, pitch 5.08 mm, angled, black, 1-1747145-7
Unit Price (€ / pc.)
11.7572 € *
Available: 0 pcs.
Available in 5 Days: 114 pcs.
Leadtime: 24 Weeks **
Total Price:
235.14 € *
Price list
Quantity
Price per unit*
20 pcs.
11.7572 €
40 pcs.
11.5192 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 1-1747145-7, AMP
The 1-1747145-7 is useful for enabling cableless control board. This product is equipped with retention leg to protect board from load and space allocated to prevent the contact from twisting.
Features
- Circuit numbers are easily identified for board connector
- Keying function included for flexibility when using multiple units
- Soldering without masking
Technical specifications
| Anschluss | Lötanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 20 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 7-polig | |
| Rastermaß | 5.08 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
