1-215297-4 | AMP
Socket header, 14 pole, pitch 2.54 mm, straight, green, 1-215297-4
Unit Price (€ / pc.)
2.2848 € *
Available: 0 pcs.
Available in 5 Days: 413 pcs.
Leadtime: 24 Weeks **
Straight socket headers, series HV 100, type TE Connectivity/AMP ..-0215.
With 2.54 mm grid. Single-row or dual-row contact arrangement. With initial point of contact and closed base. Stackable without grid loss. Cranked solder ends for fastening in the PCB perforation; Housing: polyester GV, green, self-extinguishing to UL 94 V-0. Contact material: CuSn. Contact finish: gold-plated on nickel primer, 2.5 µ tin in the solder area.
Single-row, type ..-0215.

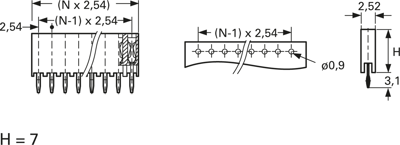

Technical attributes (type, number of poles, overall height (H)): 1-0215297-4, 14-pole, H 7.0 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | grün | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 14-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
