1-215297-6 | AMP

Socket header, 16 pole, pitch 2.54 mm, straight, green, 1-215297-6

Order No.: 59F5646
EAN: 4099891006396
MPN:
1-215297-6
1-0215297-6
Series: AMPMODU
AMP

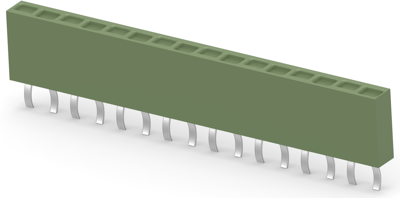

1-215297-6 AMP PCB Connection Systems Image 1

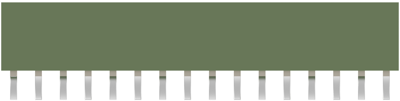

1-215297-6 AMP PCB Connection Systems Image 2

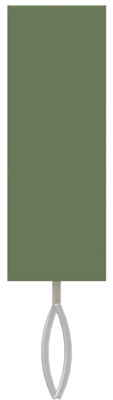

1-215297-6 AMP PCB Connection Systems Image 3

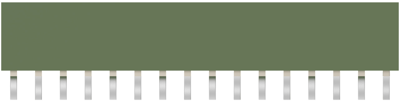

1-215297-6 AMP PCB Connection Systems Image 4
1-215297-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0111 € *
Available: 45 pcs.
Leadtime: 2 Weeks **
Total Price:
2.01 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0111 €
10 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

Straight socket headers, series HV 100, type TE Connectivity/AMP ..-0215.

With 2.54 mm grid. Single-row or dual-row contact arrangement. With initial point of contact and closed base. Stackable without grid loss. Cranked solder ends for fastening in the PCB perforation; Housing: polyester GV, green, self-extinguishing to UL 94 V-0. Contact material: CuSn. Contact finish: gold-plated on nickel primer, 2.5 µ tin in the solder area.

Single-row, type ..-0215.

Technical attributes (type, number of poles, overall height (H)): 1-0215297-6, 16-pole, H 7.0 mm

Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour green
Contact type socket
contact surface gold-plated
Rated current 3 A
Orientation straight
Pin number 16 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin IN
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
