1-215309-7 | AMP

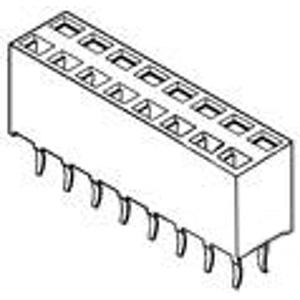

Socket header, 17 pole, pitch 2.54 mm, straight, green, 1-215309-7
Order No.: 37P6088
EAN: 4099889959475
MPN:
1-215309-7
Unit Price (€ / pc.)
2.975 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
PCB Connection System, 1-215309-7, AMP
Board-to-Board, Printed Circuit Board, Vertical, 17 Position
Technical Data
- Contact Shape & Form: Square
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester - GF
- Housing Color: green
- Orientation: straight
- Number of positions: 17
- Operating Temperature Range: -65 – 125 °C
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | grün | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 150 V | |
| Nennstrom | 3 A | |
| Orientierung | gerade | |
| Polzahl | 17-polig | |
| Rastermaß | 2.54 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
