1-215460-2 | AMP

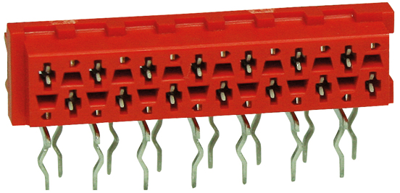

Socket header, 12 pole, pitch 1.27 mm, angled, red, 1-215460-2
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Available in 5 Days: 47,500 pcs.
Leadtime: 23 Weeks **
Total Price:
2,528.75 € *
Price list
Quantity
Price per unit*
2500 pcs.
1.0115 €
7500 pcs.
0.9282 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
PCB female connectors, angled
For PCB mounting.
Technical attributes (type, number of poles): 1-0215460-2, 12-pole
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | rot | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Orientation | abgewinkelt | |
| Pin number | 12-polig | |
| Grid | 1.27 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
