1-215570-4 | AMP

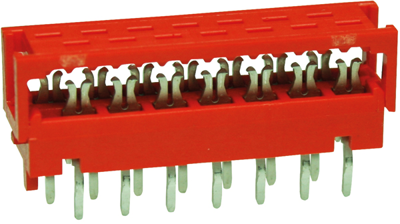

Pin header, 14 pole, pitch 1.27 mm, straight, red, 1-215570-4
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 23 Weeks **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
2500 pcs.
1.0591 €
7500 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB connectors, type TE Connectivity/AMP Micro-Match.
With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.
PCB connectors with cage clamp terminals
For PCB mounting.
Technical attributes (type, number of poles): 1-0215570-4, 14-pole
Technical specifications
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | red | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 1.5 A | |
| Orientation | straight | |
| Pin number | 14 pole | |
| Grid | 1.27 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
