1-216093-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, gray, 1-216093-0

Order No.: 56F6432
EAN: 4099891001551
MPN:
1-216093-0
1-0216093-0
Series: AMP-LATCH

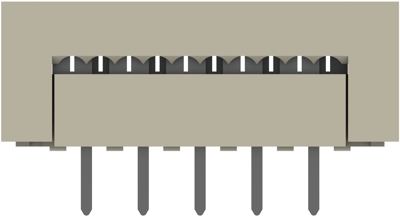

1-216093-0 AMP PCB Connection Systems Image 1

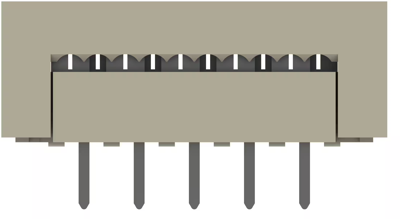

1-216093-0 AMP PCB Connection Systems Image 2

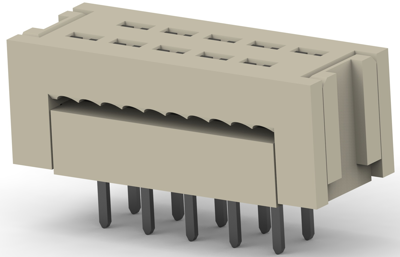

1-216093-0 AMP PCB Connection Systems Image 3

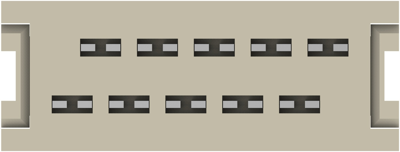

1-216093-0 AMP PCB Connection Systems Image 4

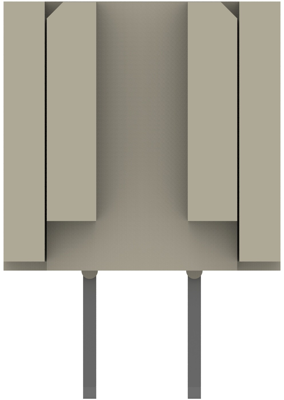

1-216093-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.3907 € *
Available: 62 pcs.
Available in 5 Days: 636 pcs.
Leadtime: 7 Weeks **
Total Price:
5.39 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3907 €
10 pcs.
4.9385 €
50 pcs.
4.4982 €
100 pcs.
4.0579 €
*incl. VAT plus shipping costs
**Subject to prior sale

Solder pins without beads, type ..-0216.

Contacts: tin bronze. The female connectors are delivered ready for operation. Additional available system components: male connectors for insertion in DIP sockets or for direct soldering to printed circuit boards, male connectors for direct soldering to PCBs with 2.54 mm grid and also cable-to-board connectors for direct insertion on PCB traces. Number of poles: 10 to 64. Operating current: max. 1.0 A. Dielectric strength: 500 VAC. Operating temperatures: - 55 to +105 °C. Standards and certifications: DIN 41651, 41611 T6, ULE 28476, MiL-C-83503.

Type: 1-0216093-0, 10-pole, B 17.8 mm

Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe grau
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 50 V
Nennstrom 1 A
Orientierung gerade
Polzahl 10-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
