1-282049-1 | AMP

Socket housing, 9 pole, pitch 5 mm, straight, natural, 1-282049-1

Order No.: 35P3986
EAN: 4099889932058
MPN:
1-282049-1

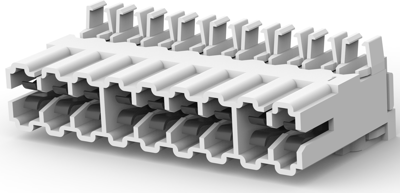

1-282049-1 AMP PCB Connection Systems Image 1

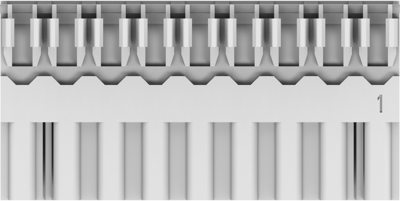

1-282049-1 AMP PCB Connection Systems Image 2

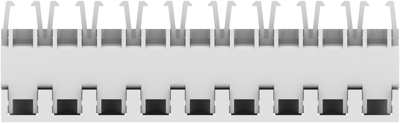

1-282049-1 AMP PCB Connection Systems Image 3

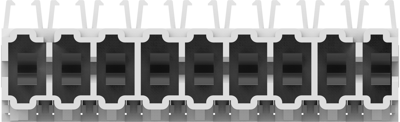

1-282049-1 AMP PCB Connection Systems Image 4
1-282049-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
587.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1300 pcs.
0.4522 €

PCB Connection System, 1-282049-1, AMP

Wire-to-Board, Wire & Cable, 9 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Brass
  • Housing Material: PA 6.6 GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 9
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 6 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsengehäuse
Bestückung bestückt
Farbe natur
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 6 A
Orientierung gerade
Polzahl 9-polig
Rastermaß 5 mm
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
