1-292132-5 | AMP

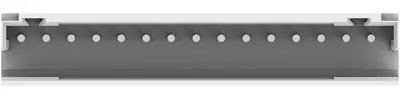

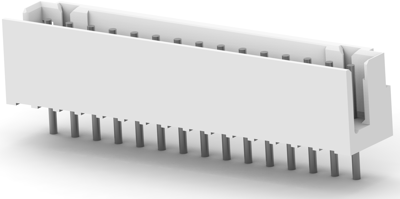

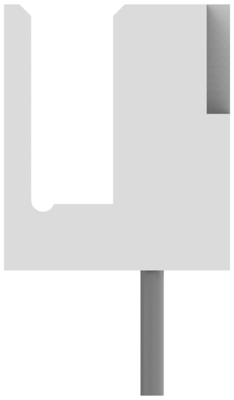

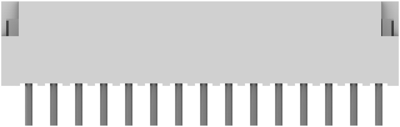

Pin header, 15 pole, pitch 2 mm, straight, natural, 1-292132-5
Order No.: 36P6995
EAN: 4099889947069
MPN:
1-292132-5
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Available in 5 Days: 8,273 pcs.
Leadtime: 10 Weeks **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
150 pcs.
0.8211 €
550 pcs.
0.7735 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-292132-5, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 15 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: 66 Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 15
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 4 A | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
