1-292186-2 | AMP

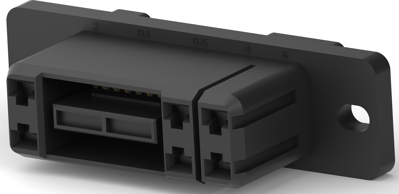

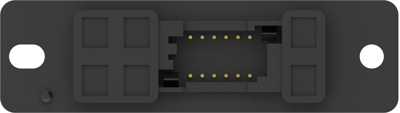

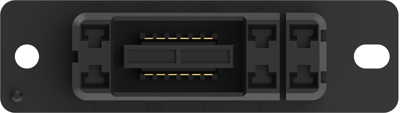

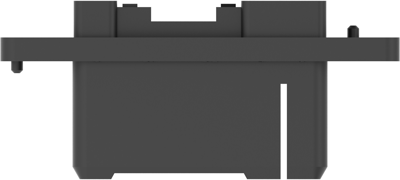

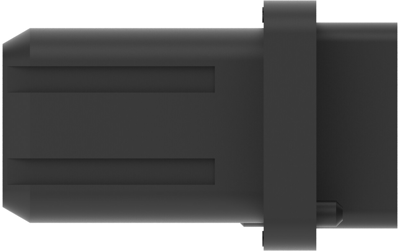

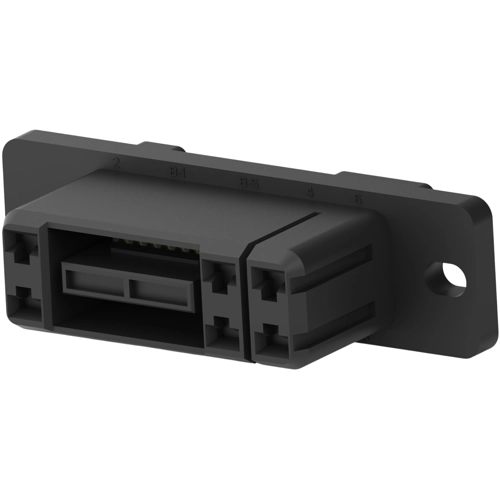

Socket header, 18 pole, pitch 2 mm, straight, black, 1-292186-2
Order No.: 36P9157
EAN: 4099889949469
MPN:
1-292186-2
Unit Price (€ / pc.)
16.5172 € *
Available: 0 pcs.
Available in 5 Days: 480 pcs.
Leadtime: 16 Weeks **
Total Price:
16.52 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5172 €
10 pcs.
15.1963 €
50 pcs.
13.6731 €
100 pcs.
12.3046 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-292186-2, AMP
Wire-to-Wire, Wire & Cable, 18 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 18
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 100 MΩ
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 6.3 mm [0.248 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Nennspannung | 150 V | |
| Nennstrom | 15 A | |
| Orientierung | gerade | |
| Polzahl | 18-polig | |
| Rastermaß | 2 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
