1-292206-3 | AMP

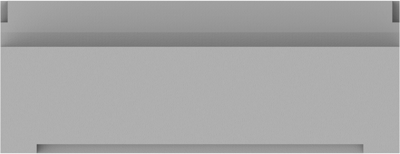

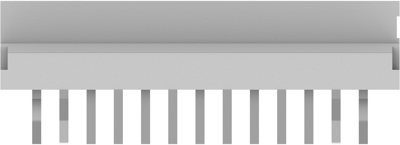

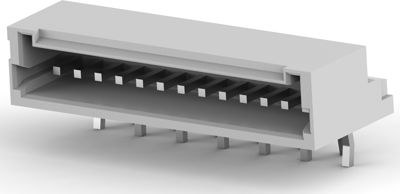

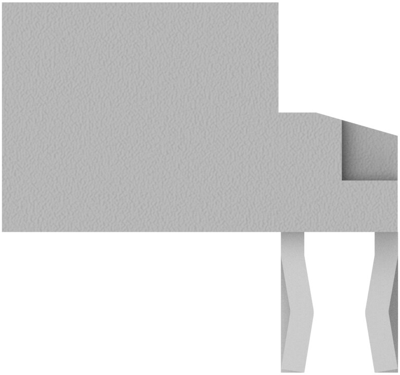

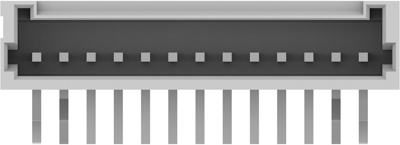

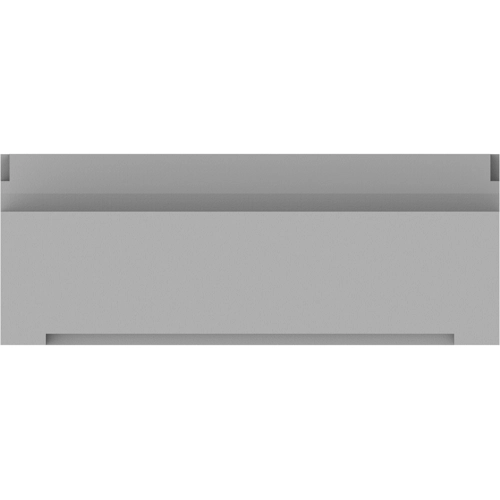

Pin header, 13 pole, pitch 1.5 mm, angled, natural, 1-292206-3
Order No.: 36P7077
EAN: 4099889947427
MPN:
1-292206-3
Unit Price (€ / pc.)
0.7735 € *
Available: 0 pcs.
Available in 5 Days: 5,200 pcs.
Leadtime: 9 Weeks **
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.6902 €
50 pcs.
0.6188 €
100 pcs.
0.5593 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-292206-3, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 13 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon(G.F)
- Housing Color: natural
- Orientation: angled
- Number of positions: 13
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 2 A
- Centerline (Pitch): 1.5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Staggered
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 13-polig | |
| Grid | 1.5 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | abgewinkelt | |
| Type of locking | Ja | |
| contact surface | vorverzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 2 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
