1-368589-1 | AMP

Socket housing, 4 pole, pitch 3.96 mm, straight, natural, 1-368589-1

Order No.: 34P6150
EAN: 4099889910704
MPN:
1-368589-1

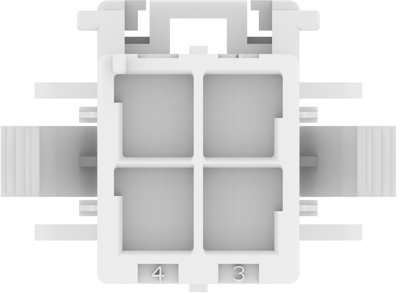

1-368589-1 AMP PCB Connection Systems Image 1

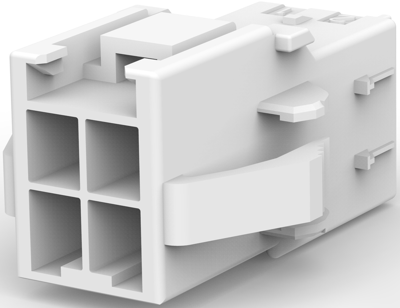

1-368589-1 AMP PCB Connection Systems Image 2

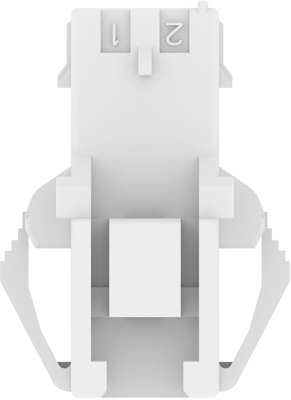

1-368589-1 AMP PCB Connection Systems Image 3

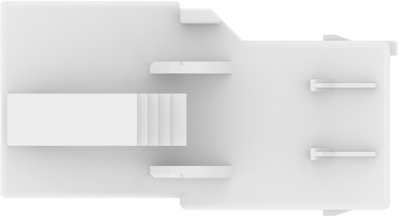

1-368589-1 AMP PCB Connection Systems Image 4

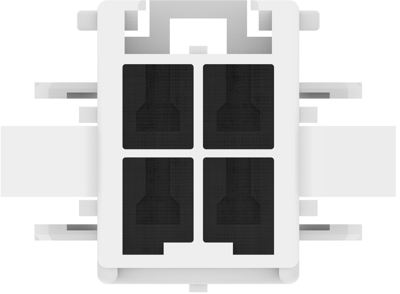

1-368589-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2856 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
685.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2400 pcs.
0.2856 €

PCB Connection System, 1-368589-1, TE Connectivity

Wire-to-Panel, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: PA 66
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -30 – 65 °C [-22 – 149 °F]
  • Centerline (Pitch): 3.96 mm
  • Row-to-Row Spacing: 4.6 mm [0.181 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsengehäuse
Farbe natur
Kontaktart Tab
Nennspannung 300 V
Orientierung gerade
Polzahl 4-polig
Rastermaß 3.96 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
