1-480285-0 | AMP

Plug housing, 10 pole, pitch 4.95 mm, straight, natural, 1-480285-0

Order No.: 34P6618
EAN: 4099889912623
MPN:
1-480285-0

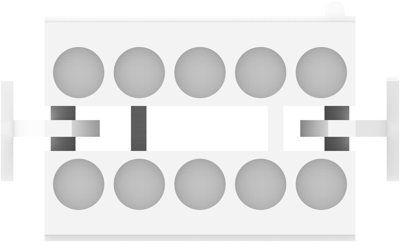

1-480285-0 AMP PCB Connection Systems Image 1

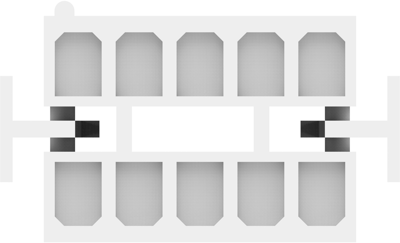

1-480285-0 AMP PCB Connection Systems Image 2

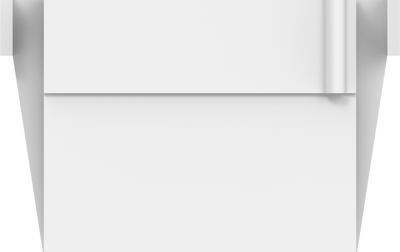

1-480285-0 AMP PCB Connection Systems Image 3

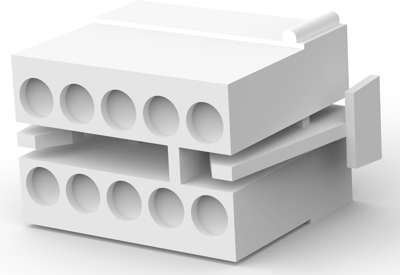

1-480285-0 AMP PCB Connection Systems Image 4

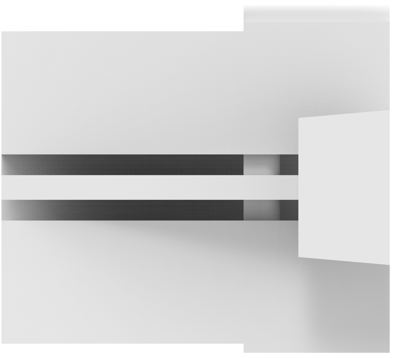

1-480285-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1305 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
1.0234 €
50 pcs.
0.9163 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-480285-0, AMP

Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 4.95 mm
  • Row-to-Row Spacing: 9.14 mm [0.36 in]
  • Sealable: No
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse
Nennspannung 250 V
Orientierung gerade
Polzahl 10-polig
Rastermaß 4.95 mm
Verriegelung Ja
Logistics
Ursprungsland CH
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
