1-480305-0 | AMP

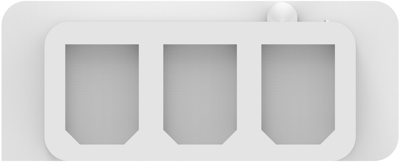

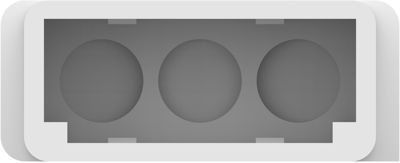

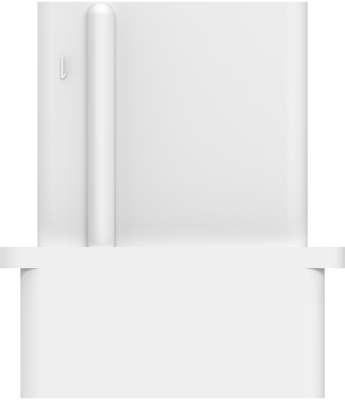

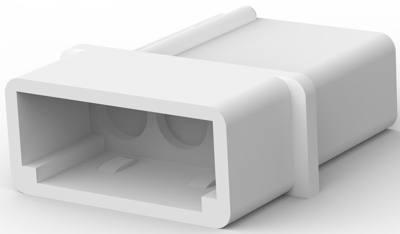

Plug housing, 3 pole, pitch 5.08 mm, straight, natural, 1-480305-0
Unit Price (€ / pc.)
0.5474 € *
Available: 117 pcs.
Available in 5 Days: 6,676 pcs.
Leadtime: 22 Weeks **
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.5117 €
50 pcs.
0.4641 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male and female contact housings, bare, 2 to 4 poles, type TE Connectivity/AMP 1-048.
To VDE 0110 group C. With polarized PA 6.6 housing to UL 94 V-2, without latching hook. Suitable as power connector for floppy disk drives. Corresponding snap-in crimp contacts are described below.
Male connector housings, type 1-048.
Technical attributes (type, number of poles, dimensions H/W/L): 1-0480305-0, 3-pole, 20.6/8.3/23.6 mm
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Stift | |
| Rated voltage | 250 V | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Grid | 5.08 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
