1-480438-0 | AMP

Plug housing, 16 pole, pitch 4.95 mm, straight, natural, 1-480438-0

Order No.: 34P6626
EAN: 4099889912692
MPN:
1-480438-0

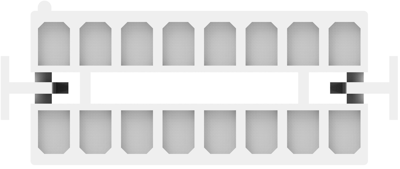

1-480438-0 AMP PCB Connection Systems Image 1

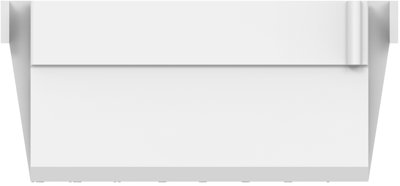

1-480438-0 AMP PCB Connection Systems Image 2

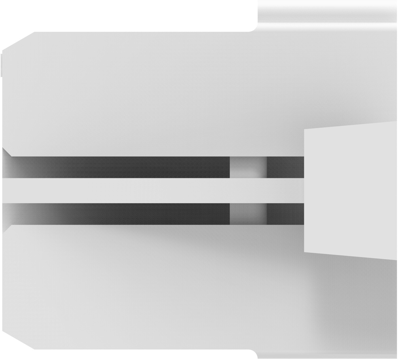

1-480438-0 AMP PCB Connection Systems Image 3

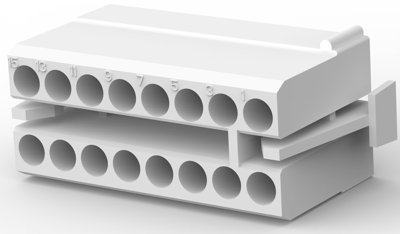

1-480438-0 AMP PCB Connection Systems Image 4

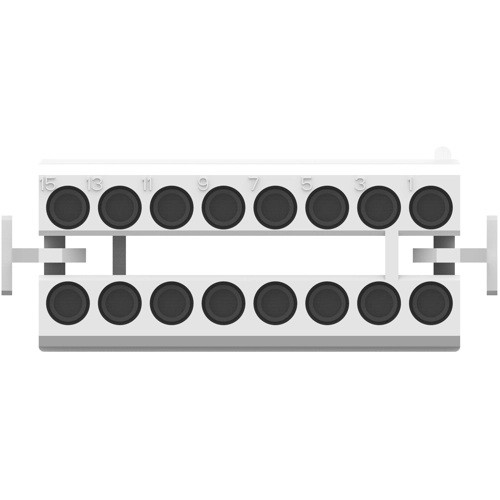

1-480438-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
1.2138 €
50 pcs.
1.0829 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-480438-0, AMP

Wire-to-Wire, Wire & Cable, 16 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 16
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 4.95 mm
  • Row-to-Row Spacing: 9.14 mm [0.36 in]
  • Sealable: No
Technical specifications
Connection crimp connection
Number of rows 2
Version plug housing
Additional parts unequipped
Colour natural
Contact type socket
Rated voltage 250 V
Orientation straight
Pin number 16 pole
Grid 4.95 mm
Type of locking Yes
Logistics
Country of origin CH
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
