1-480512-0 | AMP

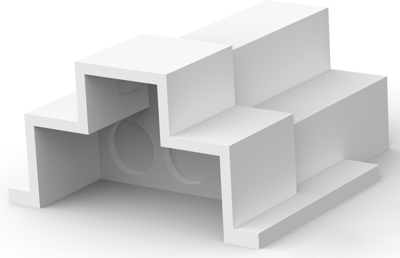

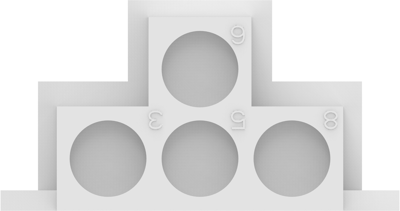

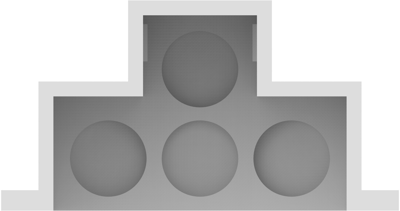

Socket housing, 4 pole, pitch 6.1 mm, straight, natural, 1-480512-0
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Available in 5 Days: 409 pcs.
Leadtime: 14 Weeks **
PCB Connection System, 1-480512-0, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.1 mm
- Row-to-Row Spacing: 6.1 mm [0.24 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Nennspannung | 250 V | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 6.1 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
