1-480698-0 | AMP

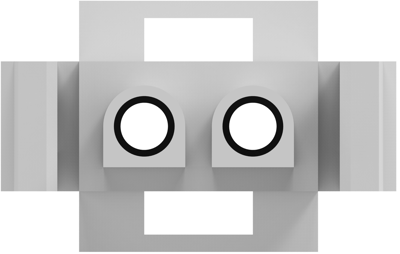

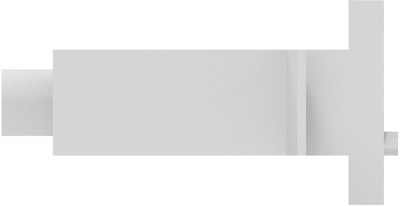

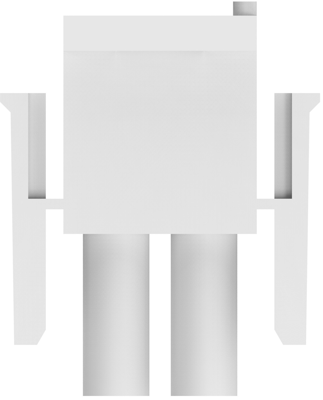

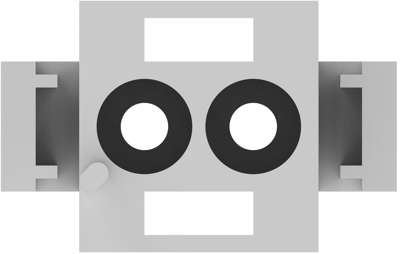

Plug housing, 2 pole, pitch 6.35 mm, straight, natural, 1-480698-0
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
PCB Connection System, 1-480698-0, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 19 A
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Colour | natural | |
| Contact type | socket/pin | |
| Rated voltage | 150 V | |
| Rated current | 19 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 6.35 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
