1-480699-2 | AMP

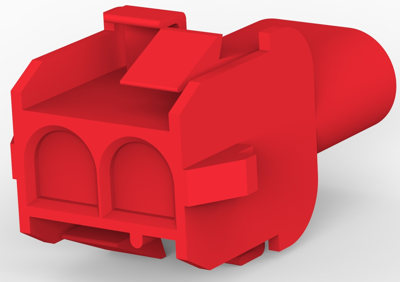

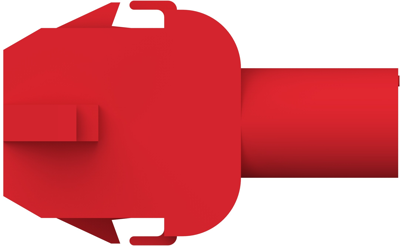

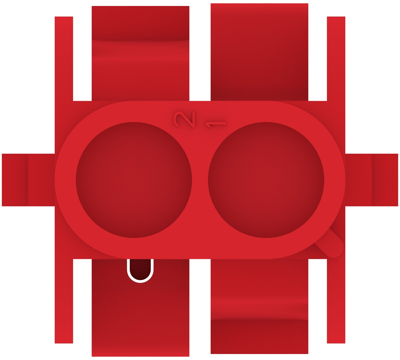

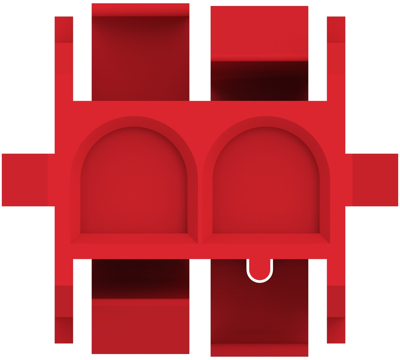

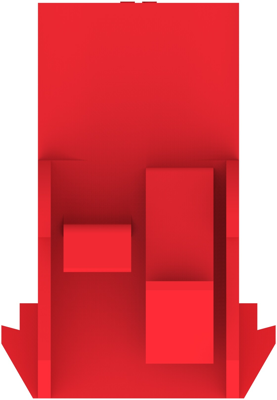

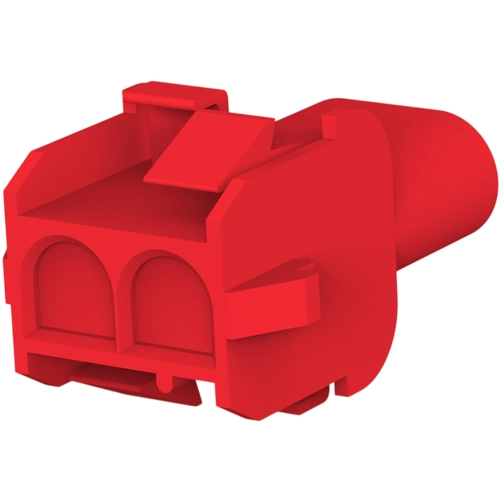

Socket housing, 2 pole, pitch 6.35 mm, straight, red, 1-480699-2
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 5 Days: 7,000 pcs.
Leadtime: 23 Weeks **
PCB Connection System, 1-480699-2, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 2
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Colour | rot | |
| Contact type | Buchse/Stift | |
| Rated voltage | 600 V | |
| Rated current | 19 A | |
| Orientation | gerade | |
| Pin number | 2-polig | |
| Grid | 6.35 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
