1-480700-4 | AMP

Plug housing, 3 pole, pitch 6.35 mm, straight, yellow, 1-480700-4

Order No.: 35P4952
EAN: 4099889935998
MPN:
1-480700-4

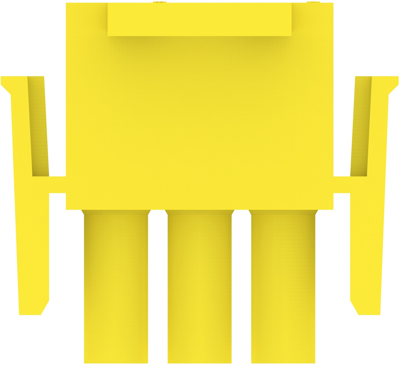

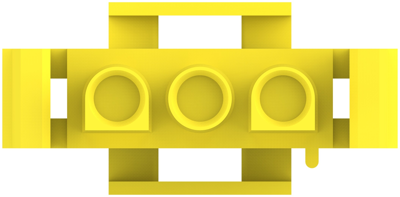

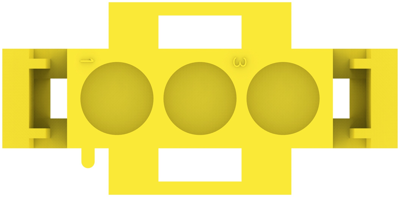

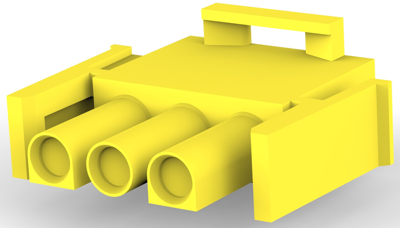

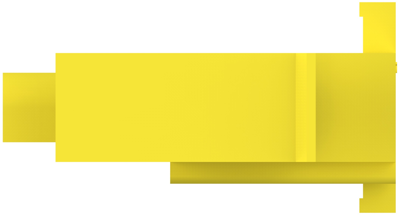

1-480700-4 AMP PCB Connection Systems Image 1
1-480700-4 AMP PCB Connection Systems Image 2
1-480700-4 AMP PCB Connection Systems Image 3
1-480700-4 AMP PCB Connection Systems Image 4
1-480700-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2832 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
1,472.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5200 pcs.
0.2832 €

PCB Connection System, 1-480700-4, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: yellow
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Crimpanschluss
Number of rows 1
Version Steckergehäuse
Additional parts unbestückt
Colour gelb
Contact type Buchse/Stift
Rated voltage 600 V
Rated current 19 A
Orientation gerade
Pin number 3-polig
Grid 6.35 mm
Type of locking Ja
Logistics
Country of origin HU
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
