1-480701-2 | AMP

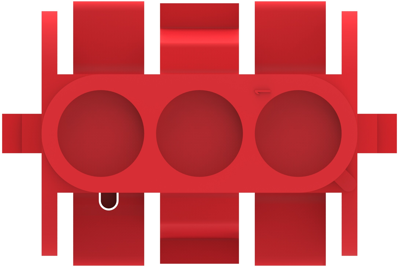

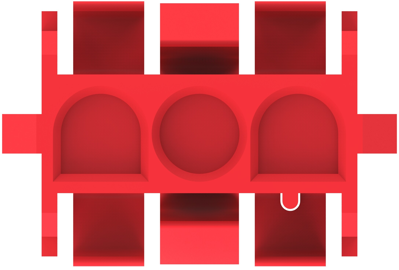

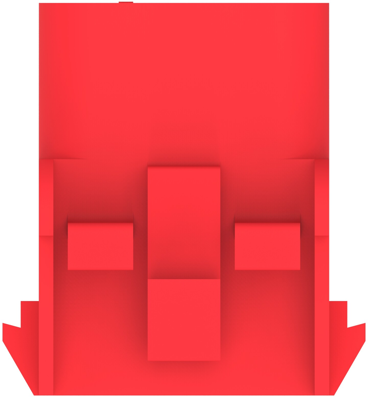

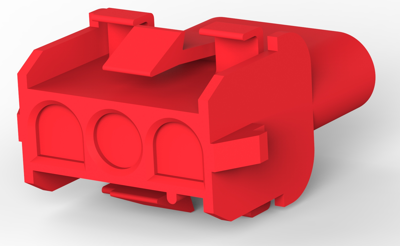

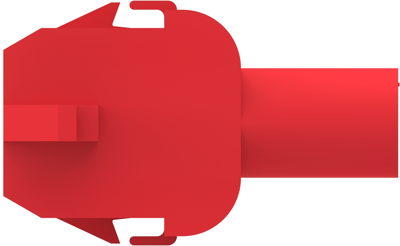

Socket housing, 3 pole, pitch 6.35 mm, straight, red, 1-480701-2
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
PCB Connection System, 1-480701-2, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Bestückung | unbestückt | |
| Farbe | rot | |
| Kontaktart | Buchse/Stift | |
| Nennspannung | 600 V | |
| Nennstrom | 19 A | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Rastermaß | 6.35 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
