1-480702-0 | AMP

Plug housing, 4 pole, pitch 6.35 mm, straight, natural, 1-480702-0

Order No.: 35P4970
EAN: 4099889936179
MPN:
1-480702-0

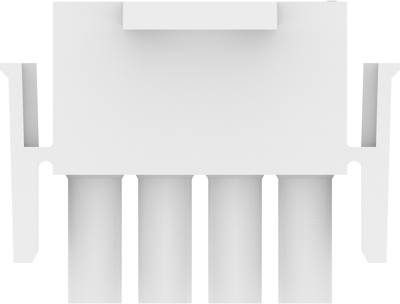

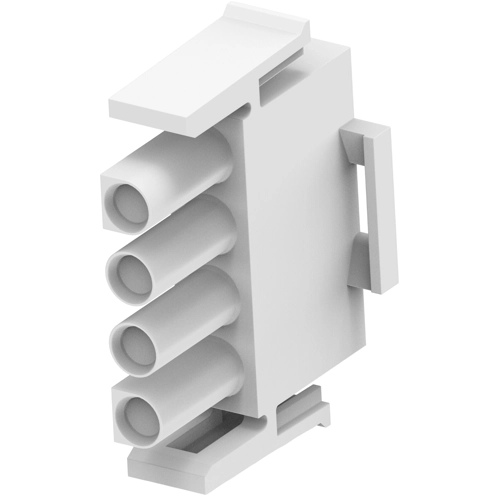

1-480702-0 AMP PCB Connection Systems Image 1

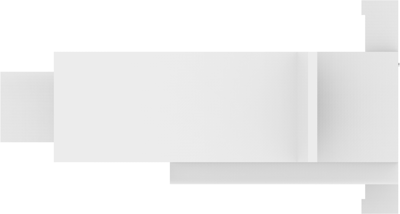

1-480702-0 AMP PCB Connection Systems Image 2

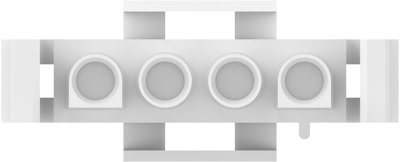

1-480702-0 AMP PCB Connection Systems Image 3

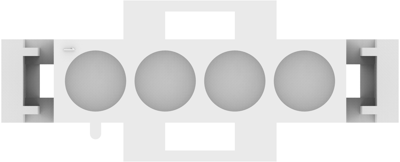

1-480702-0 AMP PCB Connection Systems Image 4

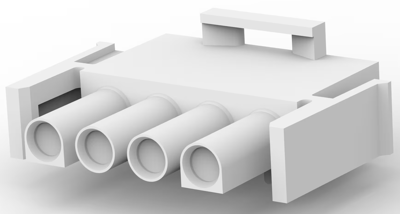

1-480702-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 5 Days: 10,500 pcs.
Leadtime: 16 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3451 €
50 pcs.
0.3094 €
100 pcs.
0.2594 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-480702-0, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe natur
Kontaktart Buchse/Stift
Nennspannung 150 V
Nennstrom 19 A
Orientierung gerade
Polzahl 4-polig
Rastermaß 6.35 mm
Verriegelung Ja
Logistics
Ursprungsland MX
Zolltarifnummer 85472000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
