1-480708-9 | AMP

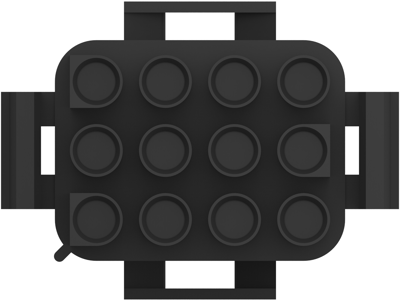

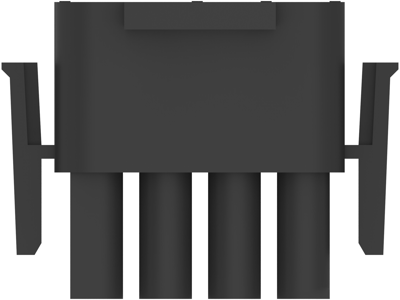

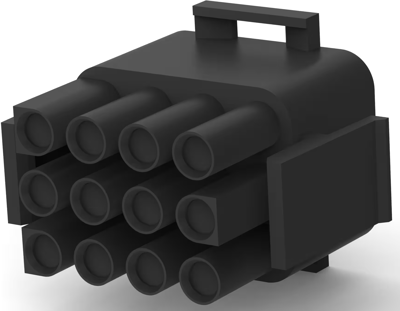

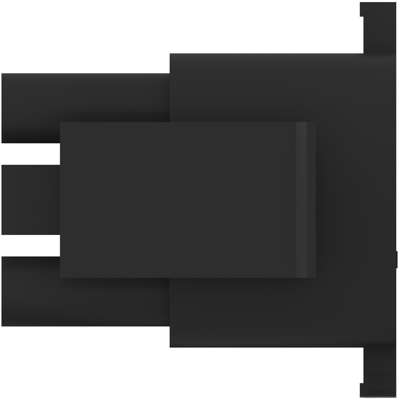

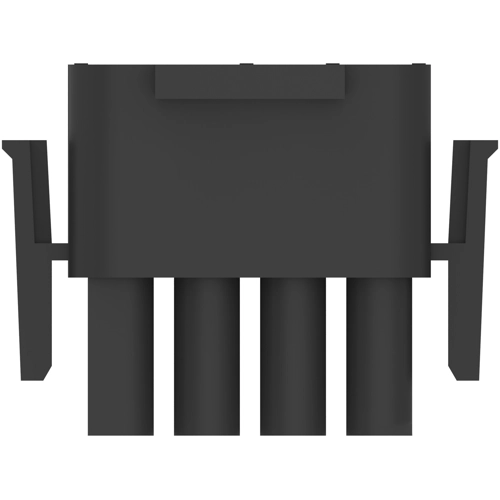

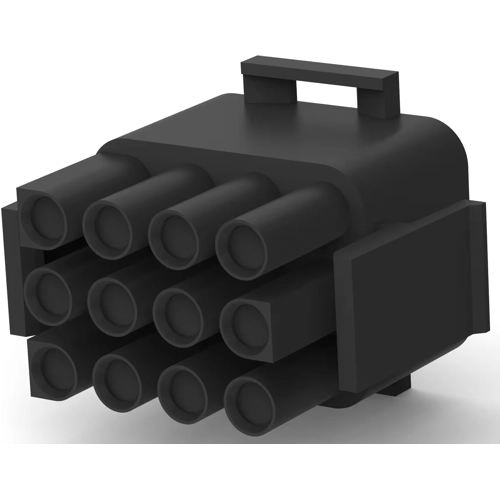

Plug housing, 12 pole, pitch 6.35 mm, straight, black, 1-480708-9
Unit Price (€ / pc.)
0.3451 € *
Available: 0 pcs.
Available in 5 Days: 7,800 pcs.
Leadtime: 23 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3451 €
1000 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-480708-9, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 12 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 3 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse/Stift | |
| Nennspannung | 600 V | |
| Nennstrom | 19 A | |
| Orientierung | gerade | |
| Polzahl | 12-polig | |
| Rastermaß | 6.35 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
