1-480763-0 | AMP

Plug housing, 5 pole, pitch 6.35 mm, straight, natural, 1-480763-0

Order No.: 35P4985
EAN: 4099889936308
MPN:
1-480763-0

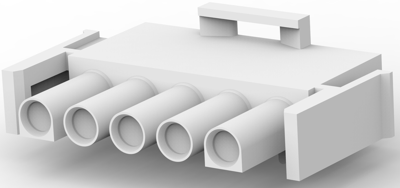

1-480763-0 AMP PCB Connection Systems Image 1

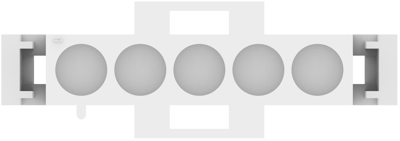

1-480763-0 AMP PCB Connection Systems Image 2

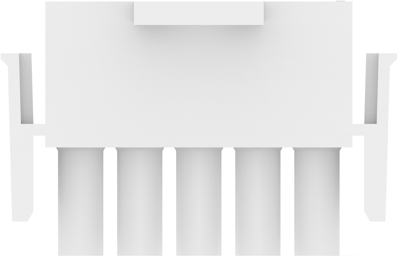

1-480763-0 AMP PCB Connection Systems Image 3

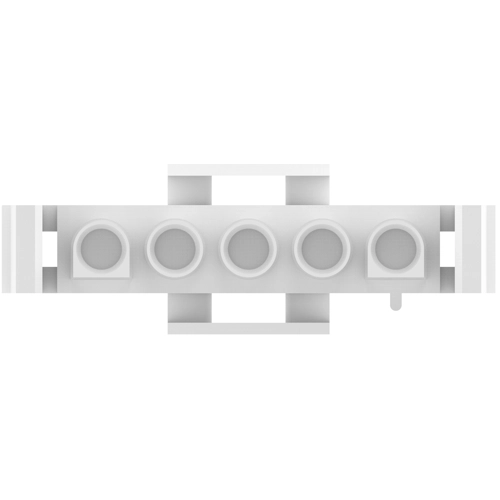

1-480763-0 AMP PCB Connection Systems Image 4

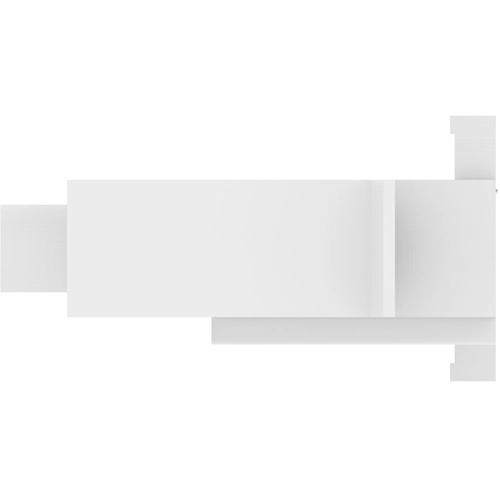

1-480763-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Available in 5 Days: 129,521 pcs.
Leadtime: 17 Weeks **
Total Price:
0.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.4046 €

PCB Connection System, 1-480763-0, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 5
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Crimpanschluss
Number of rows 1
Version Steckergehäuse
Colour natur
Contact type Buchse/Stift
Rated voltage 150 V
Rated current 19 A
Orientation gerade
Pin number 5-polig
Grid 6.35 mm
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85472000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
