1-5102162-0 | AMP

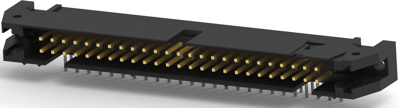

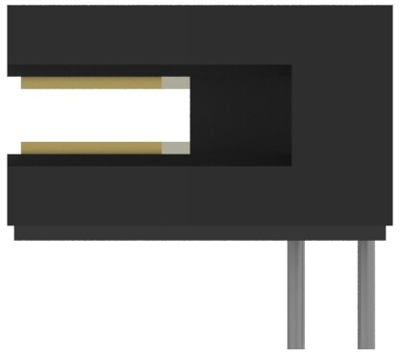

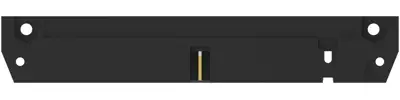

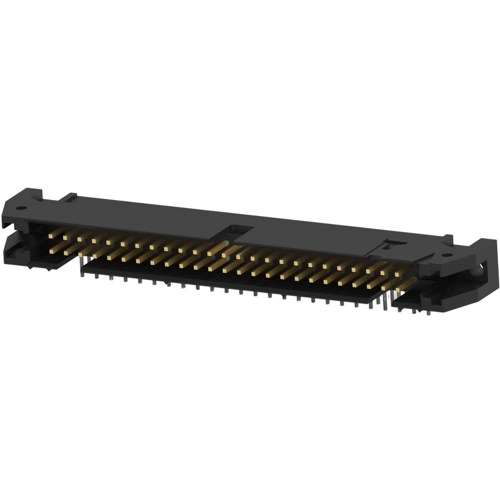

Pin header, 50 pole, pitch 2.54 mm, angled, black, 1-5102162-0
Unit Price (€ / pc.)
8.9250 € *
Available: 0 pcs.
Available in 5 Days: 935 pcs.
Leadtime: 13 Weeks **
Total Price:
8.93 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9250 €
10 pcs.
8.2110 €
50 pcs.
7.3899 €
100 pcs.
6.6521 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-5102162-0, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 50 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Glass Filled Nylon/Polyester
- Housing Color: black
- Orientation: angled
- Number of positions: 50
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Orientation | abgewinkelt | |
| Pin number | 50-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
