1-5103308-3 | AMP

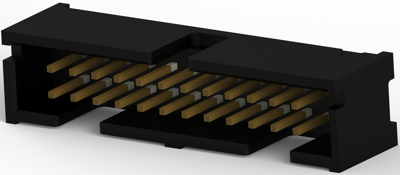

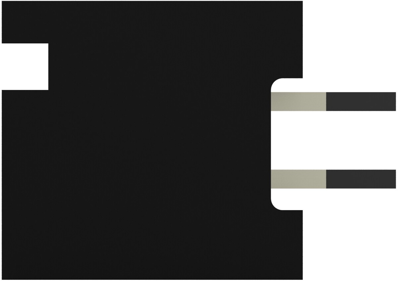

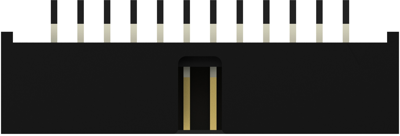

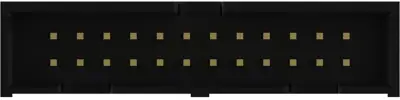

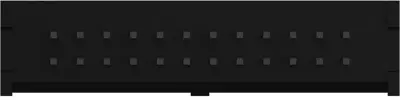

Pin header, 24 pole, pitch 2.54 mm, straight, black, 1-5103308-3
Unit Price (€ / pc.)
2.4633 € *
Available: 0 pcs.
Available in 5 Days: 455 pcs.
Leadtime: 10 Weeks **
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
65 pcs.
2.4633 €
260 pcs.
2.4157 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-5103308-3, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 24 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Glass Filled Nylon/PBT
- Housing Color: black
- Orientation: straight
- Number of positions: 24
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
