1-5499141-2 | AMP

Pin header, 64 pole, pitch 2.54 mm, angled, black, 1-5499141-2

Order No.: 36P5713
EAN: 4099889945560
MPN:
1-5499141-2
Series: AMP-LATCH

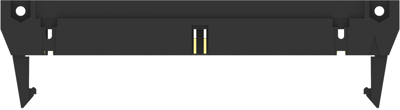

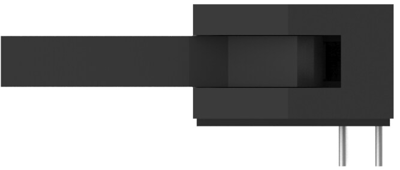

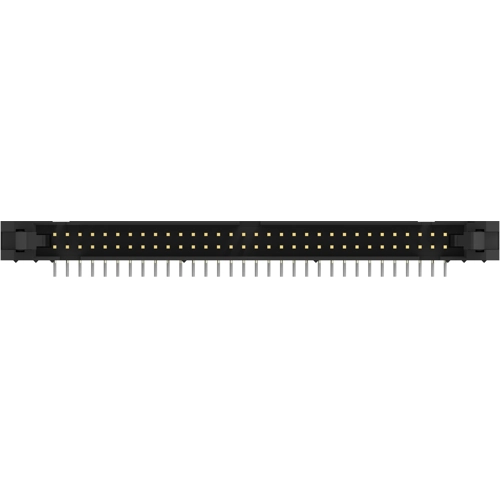

1-5499141-2 AMP PCB Connection Systems Image 1
1-5499141-2 AMP PCB Connection Systems Image 2
1-5499141-2 AMP PCB Connection Systems Image 3
1-5499141-2 AMP PCB Connection Systems Image 4
1-5499141-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
16.4934 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
3,562.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
216 pcs.
16.4934 €

PCB Connection System, 1-5499141-2, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 64 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Glass Filled Nylon/Polyester
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 64
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 150 V
Nennstrom 1 A
Orientierung abgewinkelt
Polzahl 64-polig
Rastermaß 2.54 mm
Verriegelung Ja
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
