1-640452-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, natural, 1-640452-0

Order No.: 35P1812
EAN: 4099889928242
MPN:
1-640452-0
Series: MTA-100

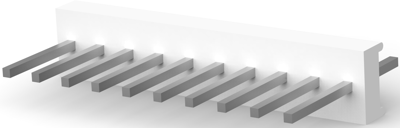

1-640452-0 AMP PCB Connection Systems Image 1

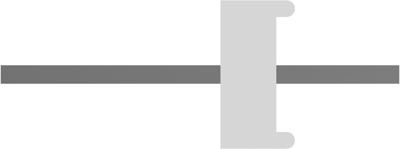

1-640452-0 AMP PCB Connection Systems Image 2

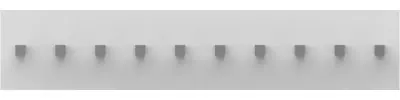

1-640452-0 AMP PCB Connection Systems Image 3

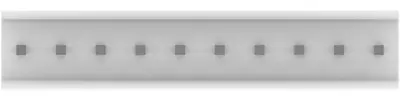

1-640452-0 AMP PCB Connection Systems Image 4

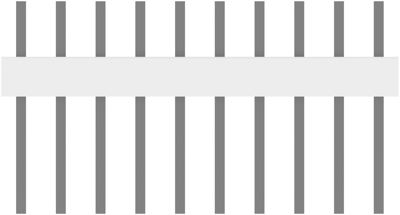

1-640452-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2015 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 21 Weeks **
Total Price:
2.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.2015 €

PCB Connection System, 1-640452-0, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 5 A
Orientierung gerade
Polzahl 10-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
