1-640455-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, angled, natural, 1-640455-0

Order No.: 35P1811
EAN: 4099889928235
MPN:
1-640455-0
Series: MTA-100

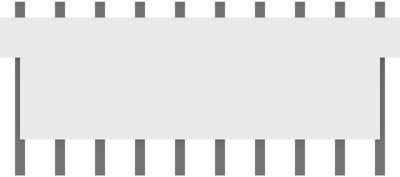

1-640455-0 AMP PCB Connection Systems Image 1

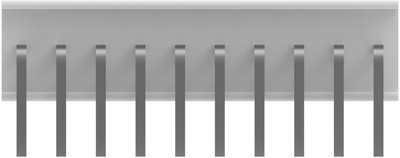

1-640455-0 AMP PCB Connection Systems Image 2

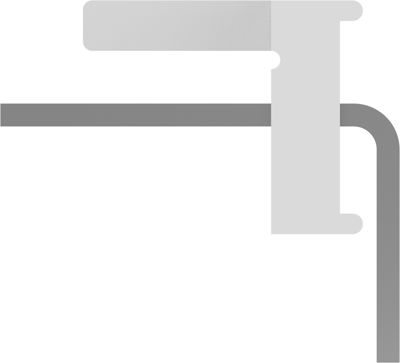

1-640455-0 AMP PCB Connection Systems Image 3

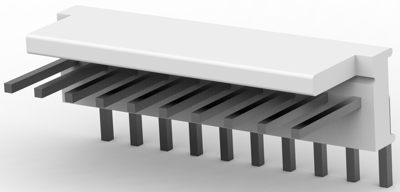

1-640455-0 AMP PCB Connection Systems Image 4

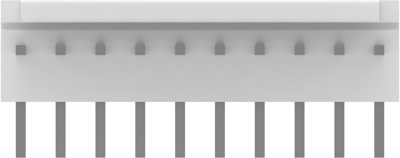

1-640455-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4998 € *
Available: 0 pcs.
Available in 5 Days: 19,863 pcs.
Leadtime: 21 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4403 €
50 pcs.
0.3927 €
100 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-640455-0, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 5 A
Orientierung abgewinkelt
Polzahl 10-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
