1-770849-3 | AMP

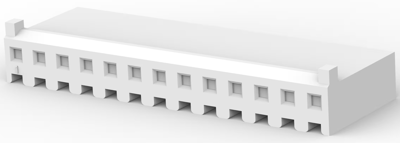

Socket housing, 13 pole, pitch 3.96 mm, straight, natural, 1-770849-3

Order No.: 35P1535
EAN: 4099889926217
MPN:
1-770849-3
Series: SL-156
1-770849-3 AMP PCB Connection Systems Image 1
1-770849-3 AMP PCB Connection Systems Image 2
1-770849-3 AMP PCB Connection Systems Image 3
1-770849-3 AMP PCB Connection Systems Image 4
1-770849-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2451 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
735.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.2451 €

PCB Connection System, 1-770849-3, AMP

Wire-to-Board, Wire & Cable, 13 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon - GF
  • Housing Color: natural
  • Number of positions: 13
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 6.5 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection Crimpanschluss
Number of rows 1
Version Buchsengehäuse
Additional parts unbestückt
Colour natur
Contact type Buchse
Rated voltage 150 V
Rated current 6.5 A
Orientation gerade
Pin number 13-polig
Grid 3.96 mm
Type of locking Ja
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
