1-770858-0 | AMP

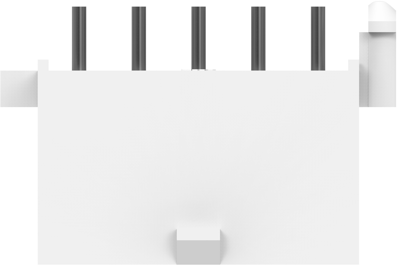

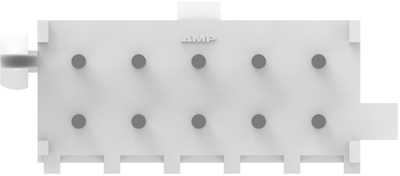

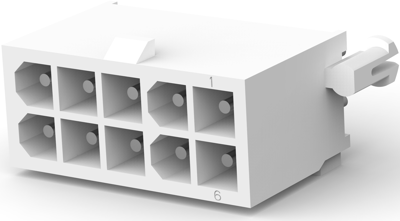

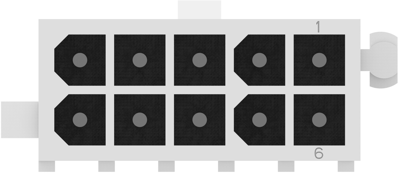

Pin header, 10 pole, pitch 4.14 mm, straight, white, 1-770858-0
Unit Price (€ / pc.)
2.7727 € *
Available: 0 pcs.
Available in 5 Days: 4,300 pcs.
Leadtime: 22 Weeks **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
35 pcs.
2.7727 €
200 pcs.
2.3086 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-770858-0, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon, Nylon GF
- Housing Color: white
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | white | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 9.5 A | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Grid | 4.14 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
