1-770873-1 | AMP

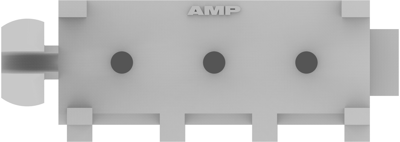

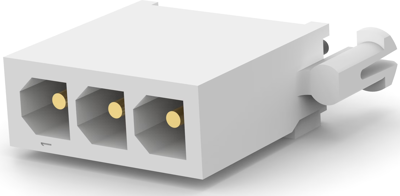

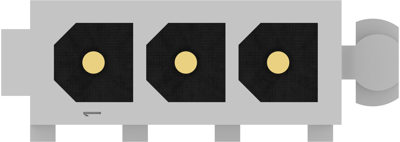

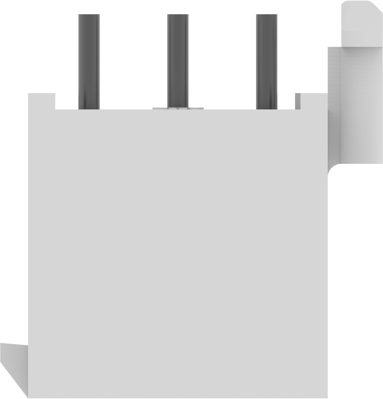

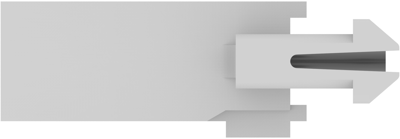

Pin header, 3 pole, pitch 4.14 mm, straight, white, 1-770873-1
Unit Price (€ / pc.)
2.7013 € *
Available: 0 pcs.
Available in 5 Days: 5,258 pcs.
Leadtime: 22 Weeks **
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
2.4871 €
50 pcs.
2.2372 €
100 pcs.
2.0111 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-770873-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | weiß | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 150 V | |
| Nennstrom | 9.5 A | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Rastermaß | 4.14 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
