1-794067-0 | AMP

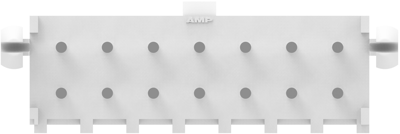

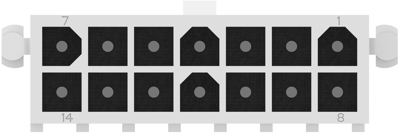

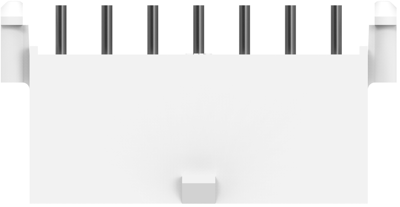

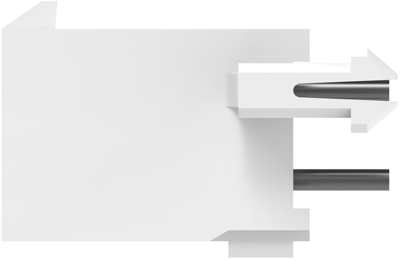

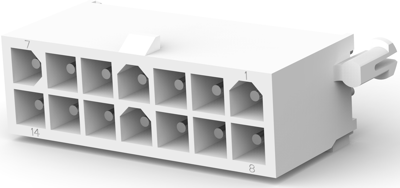

Pin header, 14 pole, pitch 4.14 mm, straight, white, 1-794067-0
Unit Price (€ / pc.)
3.3201 € *
Available: 0 pcs.
Available in 5 Days: 34,474 pcs.
Leadtime: 22 Weeks **
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
3.0583 €
50 pcs.
2.7489 €
100 pcs.
2.4752 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-794067-0, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 14 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: straight
- Number of positions: 14
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.163 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 14-polig | |
| Grid | 4.14 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 9.5 A | |
| Additional parts | bestückt | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | weiß |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
