1-794072-0 | AMP

Pin header, 24 pole, pitch 4.14 mm, straight, white, 1-794072-0

Order No.: 34P9561
EAN: 4099889920178
MPN:
1-794072-0

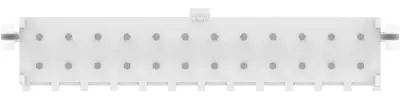

1-794072-0 AMP PCB Connection Systems Image 1

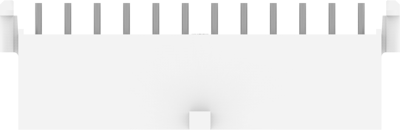

1-794072-0 AMP PCB Connection Systems Image 2

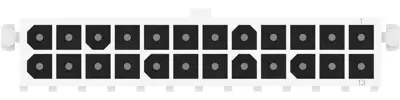

1-794072-0 AMP PCB Connection Systems Image 3

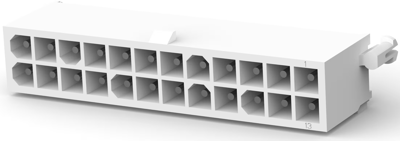

1-794072-0 AMP PCB Connection Systems Image 4

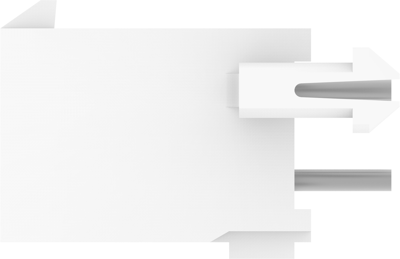

1-794072-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9159 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
766.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
400 pcs.
1.9159 €

PCB Connection System, 1-794072-0, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 24 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 24
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 9.5 A
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.163 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe weiß
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 150 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 24-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
