1-794075-1 | AMP

Pin header, 16 pole, pitch 4.14 mm, straight, white, 1-794075-1

Order No.: 34P9532
EAN: 4099889919912
MPN:
1-794075-1

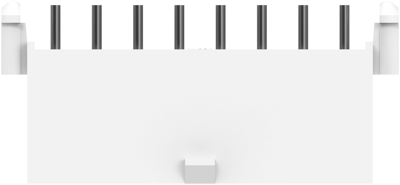

1-794075-1 AMP PCB Connection Systems Image 1

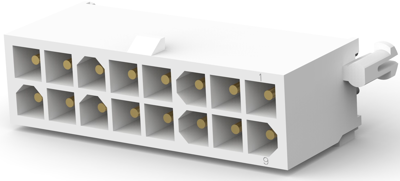

1-794075-1 AMP PCB Connection Systems Image 2

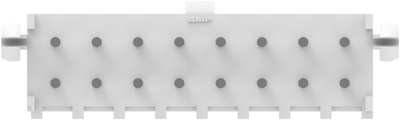

1-794075-1 AMP PCB Connection Systems Image 3

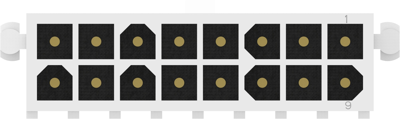

1-794075-1 AMP PCB Connection Systems Image 4

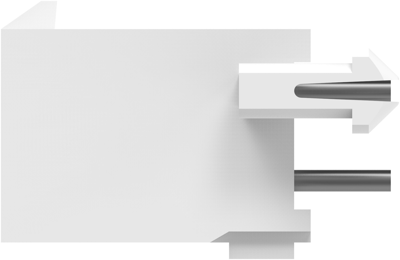

1-794075-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
9.6390 € *
Available: 0 pcs.
Available in 5 Days: 771 pcs.
Leadtime: 21 Weeks **
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6390 €
10 pcs.
8.8774 €
50 pcs.
7.9849 €
100 pcs.
7.1876 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-794075-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 16
  • Operating Temperature Range: -20 – 105 °C [-4 – 221 °F]
  • Rated current: 9.5 A
  • Centerline (Pitch): 4.14 mm
  • Row-to-Row Spacing: 4.14 mm [0.163 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Anschluss Leiterplattenanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe weiß
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 150 V
Nennstrom 9.5 A
Orientierung gerade
Polzahl 16-polig
Rastermaß 4.14 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
