1-794105-0 | AMP

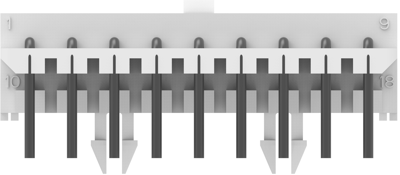

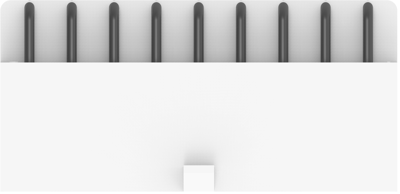

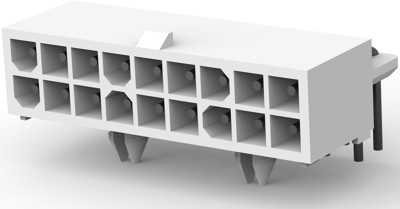

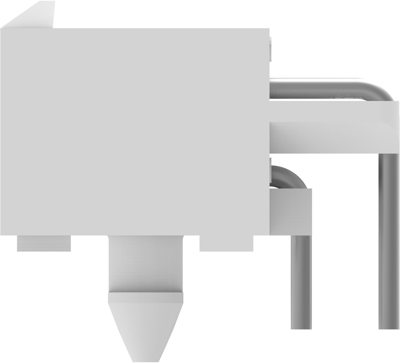

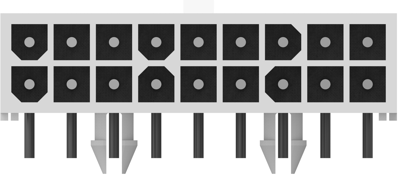

Pin header, 18 pole, pitch 4.14 mm, angled, white, 1-794105-0
Unit Price (€ / pc.)
3.7961 € *
Available: 0 pcs.
Available in 5 Days: 3,588 pcs.
Leadtime: 22 Weeks **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
25 pcs.
3.7961 €
150 pcs.
3.5938 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-794105-0, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 18 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: angled
- Number of positions: 18
- Operating Temperature Range: -20 – 85 °C [-4 – 185 °F]
- Rated current: 9.5 A
- Centerline (Pitch): 4.14 mm
- Row-to-Row Spacing: 4.14 mm [0.162 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | white | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 9.5 A | |
| Orientation | angled | |
| Pin number | 18 pole | |
| Grid | 4.14 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
