1-794953-0 | AMP

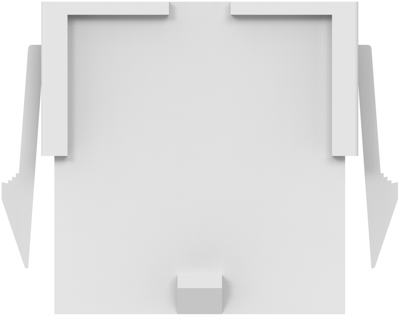

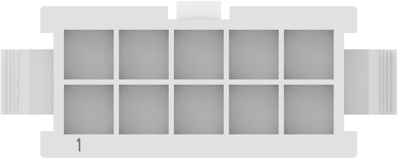

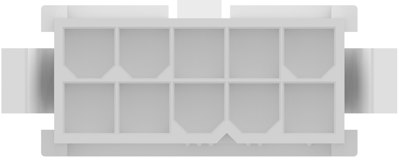

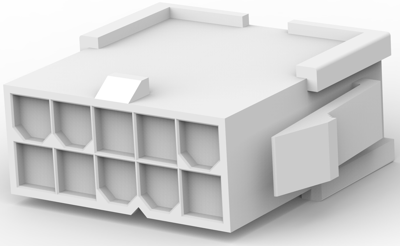

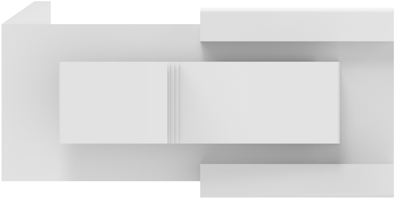

Plug housing, 10 pole, pitch 4.2 mm, straight, natural, 1-794953-0
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Available in 5 Days: 1,832 pcs.
Leadtime: 20 Weeks **
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.
4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.
Male connector housings, dual-row, bare, front panel mount, type ..-0794953.
Technical attributes (type, number of poles, dimension A): 1-0794953-0, 10-pole, A 22.2 mm
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Steckergehäuse | |
| Additional parts | unbestückt | |
| Colour | natur | |
| Contact type | Stift | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 4.2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
