1-794954-4 | AMP

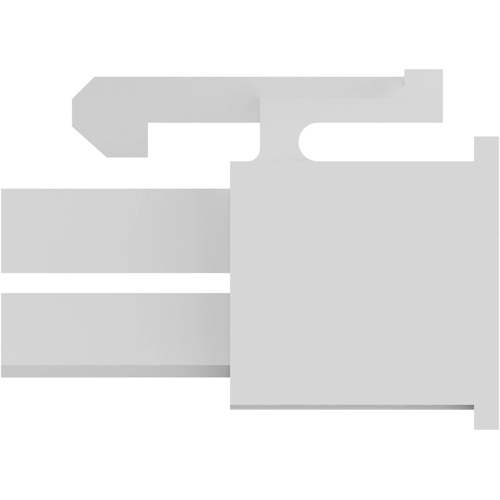

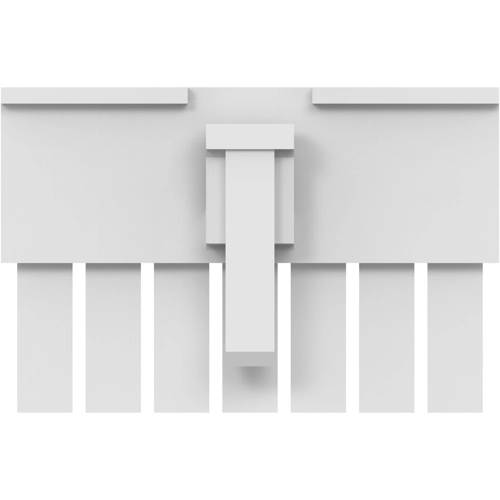

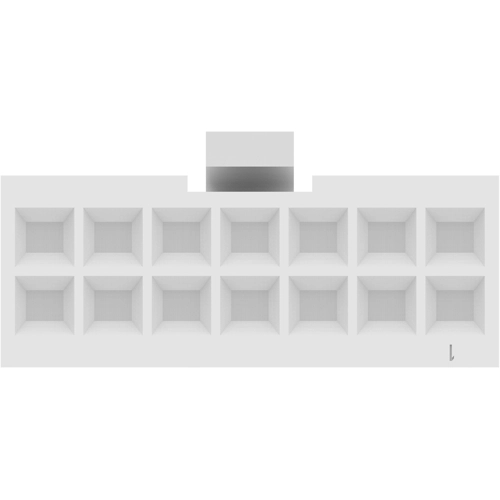

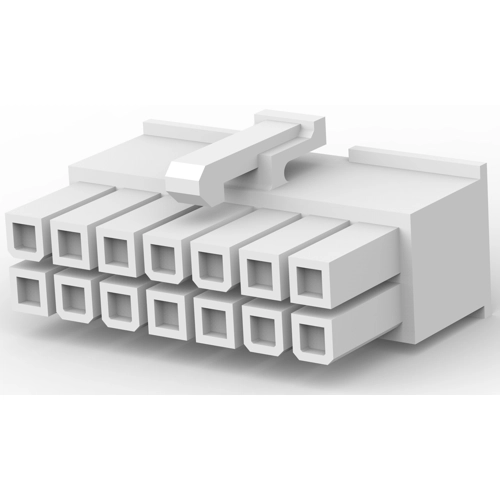

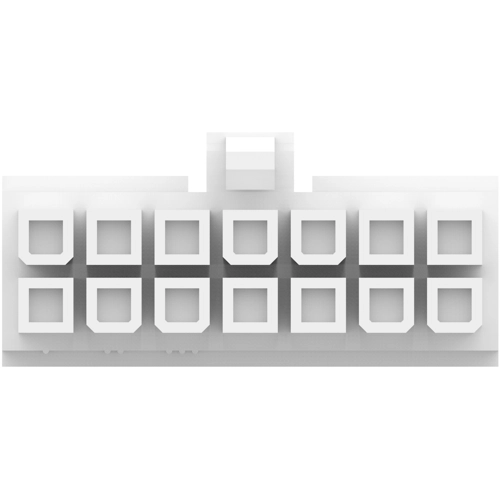

Socket header, 14 pole, pitch 4.2 mm, straight, natural, 1-794954-4
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Available in 5 Days: 1,675 pcs.
Leadtime: 20 Weeks **
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
232 pcs.
0.3808 €
2000 pcs.
0.3094 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-794954-4, AMP
Wire-to-Board, Wire-to-Wire, Wire & Cable, 14 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 14
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 600 V | |
| Nennstrom | 9 A | |
| Orientierung | gerade | |
| Polzahl | 14-polig | |
| Rastermaß | 4.2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
