1-826629-6 | AMP

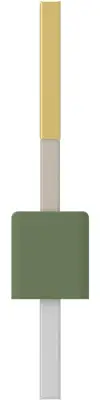

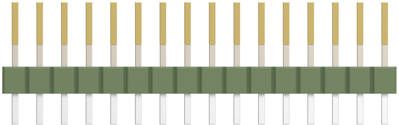

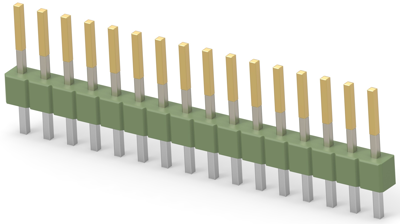

Pin header, 16 pole, pitch 2.54 mm, straight, green, 1-826629-6
Unit Price (€ / pc.)
1.8921 € *
Available: 94 pcs.
Available in 5 Days: 4,129 pcs.
Leadtime: 24 Weeks **
Total Price:
1.89 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8921 €
25 pcs.
1.5946 €
100 pcs.
1.4875 €
250 pcs.
1.4042 €
*incl. VAT plus shipping costs
**Subject to prior sale
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.
Gold-plated, pin length B 6.7 mm, type ..-0826.
Straight pins, gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm. Dimension F: 5.5 mm.
Type: 1-0826629-6, 16-pole
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 16-polig | |
| Grid | 2.54 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | vergoldet | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 5 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | Yes | |
| Colour | grün |
Download
Logistics
| Country of origin | BR |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
