1-826656-0 | AMP

Pin header, 20 pole, pitch 2.54 mm, straight, green, 1-826656-0

Order No.: 56F6756
EAN: 4099891001742
MPN:
1-826656-0
1-0826656-0
Series: AMPMODU
AMP

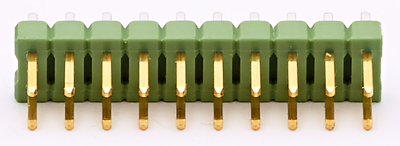

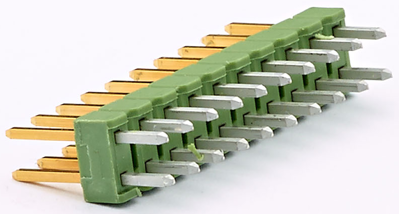

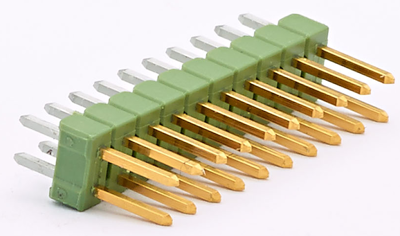

1-826656-0 AMP PCB Connection Systems Image 1
1-826656-0 AMP PCB Connection Systems Image 2
1-826656-0 AMP PCB Connection Systems Image 3
1-826656-0 AMP PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Available: 0 pcs.
Available in 5 Days: 1,650 pcs.
Leadtime: 17 Weeks **
Total Price:
1.75 € *
Price list
Quantity
Price per unit*
55 pcs.
1.7493 €
300 pcs.
1.6541 €
*incl. VAT plus shipping costs
**Subject to prior sale

Dual-row pin headers, straight, type TE Connectivity/AMP Modu II.

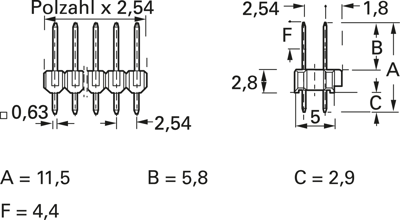

With 2.54 mm grid; Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. Contacts: tinned (2.5 µm tin over Ni) or gold-plated (0.8 µm Au over Ni). Dimension C: 3.2 mm. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 5.8 mm, type ..-0826.

Gold-plated pins in the contact area (0.8 µm Au over 1.3 µm Ni); Gold-plated zone (dimension F): 4.4 mm, tinned solder area (2.5 µm tin over 1.3 µm Ni). Dimension A: 11.5 mm. Dimension C: 2.9 mm.

Type: 1-0826656-0, 2 x 10-pole

Technical specifications
Connection PCB connection
Connection plating tin-plated
Number of rows 2
Version pin header
Additional parts equipped
Breakable Yes
Colour green
Contact type pin
contact surface gold-plated
Rated voltage 150 V
Rated current 5 A
Orientation straight
Pin number 20 pole
Grid 2.54 mm
Type of locking Yes
Logistics
Country of origin US
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
