1-826662-0 | AMP
Pin header, 20 pole, pitch 2.54 mm, angled, green, 1-826662-0
Unit Price (€ / pc.)
2.6894 € *
Available: 0 pcs.
Available in 5 Days: 591 pcs.
Leadtime: 24 Weeks **
Total Price:
2.69 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6894 €
10 pcs.
2.5109 €
50 pcs.
2.3205 €
100 pcs.
2.1182 €
*incl. VAT plus shipping costs
**Subject to prior sale
Dual-row pin headers, angled, type TE Connectivity/AMP Modu II.
With 2.54 mm grid; Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. The number of contacts can be reduced as required by breaking them off.

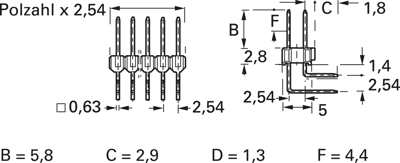

Gold-plated, pin length B 5.8 mm, type ..-0826.
Gold-plated pins in the contact area (0.8 µm gold over 1.3 µm Ni); Gold-plated zone (dimension F): 4.4 mm, tinned soldering area (2.5 µm tin over 1.3 µm Ni). Dimension C: 2.9 mm. Dimension D: 1.3 mm.
Type: 1-0826662-0, 2 x 10-pole
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 20-polig | |
| Grid | 2.54 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | abgewinkelt | |
| Type of locking | Ja | |
| contact surface | vergoldet | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 5 A | |
| Additional parts | bestückt | |
| Number of rows | 2 | |
| Breakable | Yes | |
| Colour | grün |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
