1-87631-5 | AMP

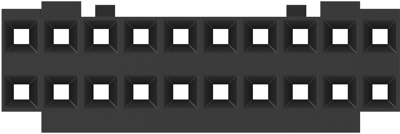

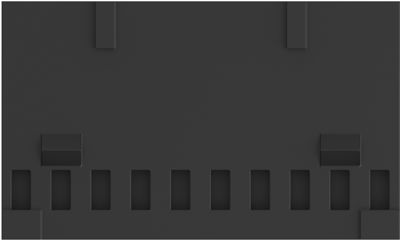

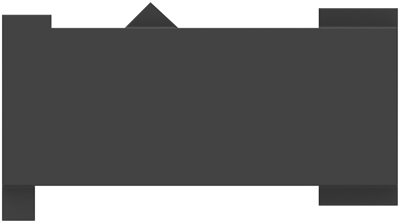

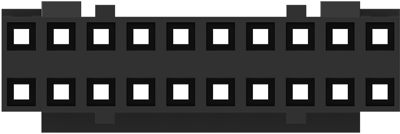

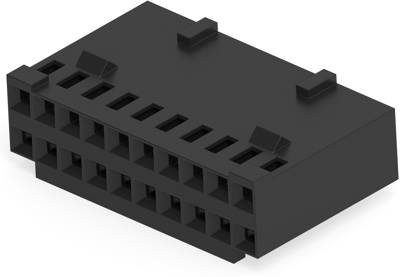

Socket housing, 20 pole, pitch 2.54 mm, straight, black, 1-87631-5
Unit Price (€ / pc.)
2.9988 € *
Available: 0 pcs.
Leadtime: 65 Weeks **
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.7608 €
50 pcs.
2.4871 €
100 pcs.
2.2372 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-87631-5, AMP
Wire-to-Board, Wire & Cable, 20 Position
Technical Data
- Contact Type: Female
- Contact Base Material: Beryllium Copper
- Housing Material: Nylon - GF
- Housing Color: black
- Number of positions: 20
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Buchsengehäuse | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 150 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 20-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
