1-917808-3 | AMP

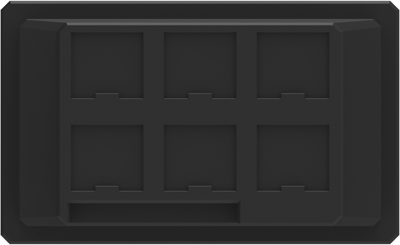

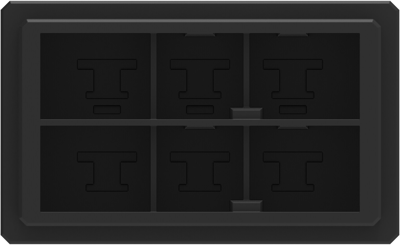

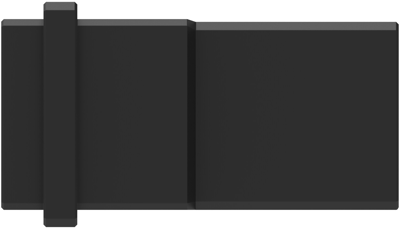

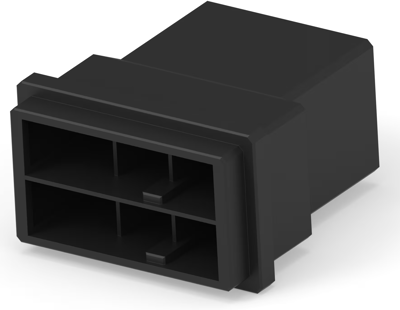

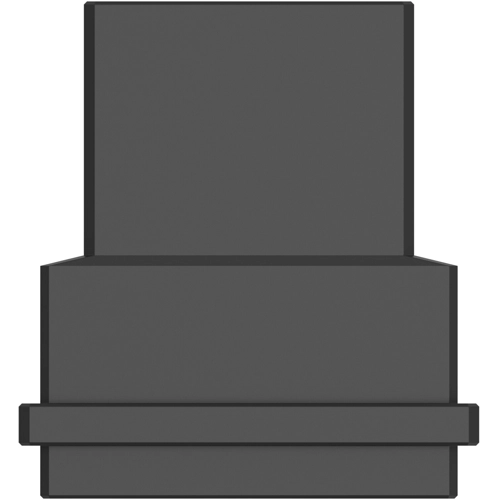

Plug housing, 6 pole, pitch 10.16 mm, straight, black, 1-917808-3
Unit Price (€ / pc.)
7.3542 € *
Available: 0 pcs.
Available in 5 Days: 55 pcs.
Leadtime: 28 Weeks **
PCB Connection System, 1-917808-3, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 10.16 mm
- Row-to-Row Spacing: 10.16 mm [0.399 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Steckergehäuse | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Nennspannung | 150 V | |
| Nennstrom | 30 A | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 10.16 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
