102321-6 | AMP

Pin header, 26 pole, pitch 2.54 mm, straight, black, 102321-6

Order No.: 36P5570
EAN: 4099889944167
MPN:
102321-6
Series: AMP-LATCH

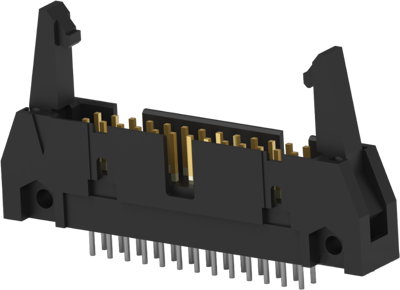

102321-6 AMP PCB Connection Systems Image 1

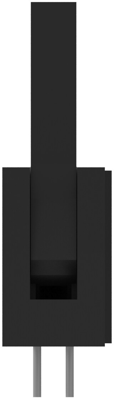

102321-6 AMP PCB Connection Systems Image 2

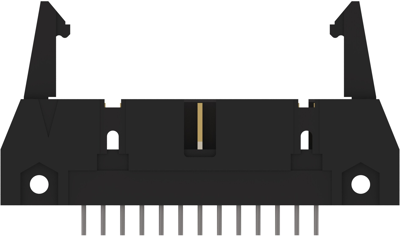

102321-6 AMP PCB Connection Systems Image 3

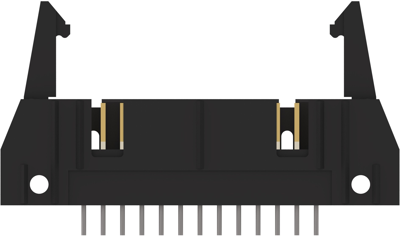

102321-6 AMP PCB Connection Systems Image 4
102321-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
7.7588 € *
Available: 0 pcs.
Available in 5 Days: 1,180 pcs.
Leadtime: 12 Weeks **
Total Price:
7.76 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7588 €
10 pcs.
7.1400 €
50 pcs.
6.4260 €
100 pcs.
5.7834 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 102321-6, AMP

Board-to-Board, Printed Circuit Board, Vertical, 26 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 26
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Connection Leiterplattenanschluss
Connection plating verzinnt
Number of rows 2
Version Stiftleiste
Additional parts bestückt
Colour schwarz
Contact type Stift
contact surface vergoldet
Rated voltage 250 V
Rated current 1 A
Orientation gerade
Pin number 26-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin GB
Customs tariff number 85366930
Compliance
RoHS conform No
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
