103311-5 | AMP

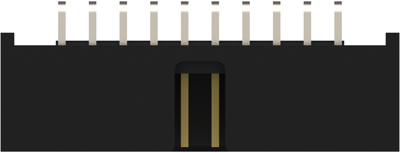

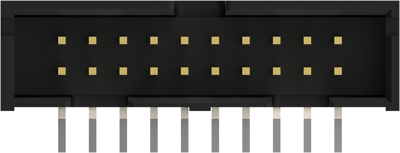

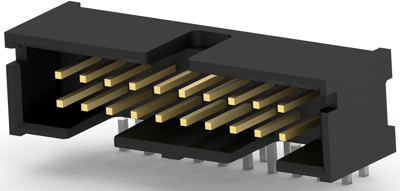

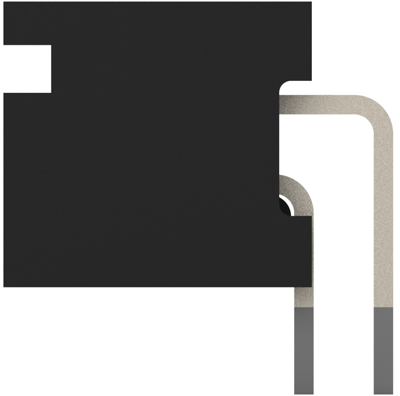

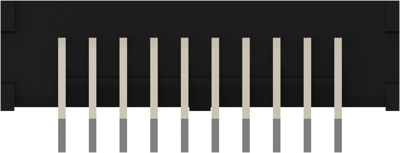

Pin header, 20 pole, pitch 2.54 mm, angled, black, 103311-5
Unit Price (€ / pc.)
4.7719 € *
Available: 0 pcs.
Available in 5 Days: 529 pcs.
Leadtime: 11 Weeks **
Total Price:
4.77 € *
Price list
Quantity
Price per unit*
75 pcs.
4.7719 €
150 pcs.
3.8318 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 103311-5, AMP
Board-to-Board, Printed Circuit Board, Right Angle, 20 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: angled
- Number of positions: 20
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 1 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
