103648-2 | AMP

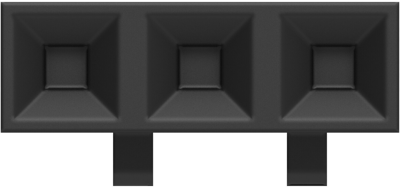

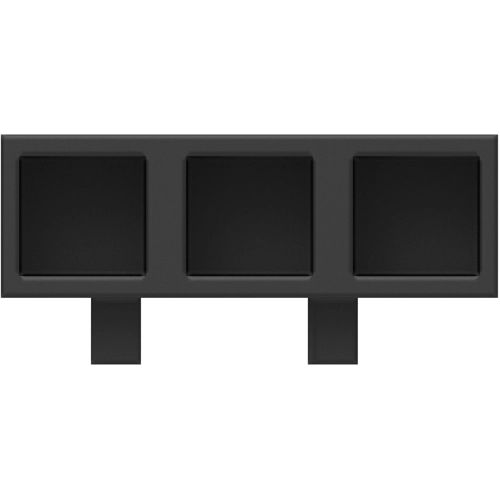

Socket housing, 3 pole, pitch 2.54 mm, straight, black, 103648-2
Unit Price (€ / pc.)
1.0829 € *
Available: 0 pcs.
Available in 5 Days: 20,000 pcs.
Leadtime: 32 Weeks **
PCB Connection System, 103648-2, AMP
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 3
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimp-/Schneidklemmanschluss | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Grid | 2.54 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
