120953-5 | AMP

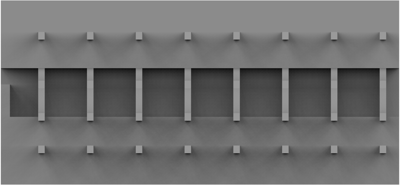

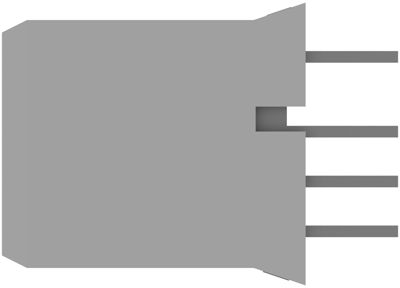

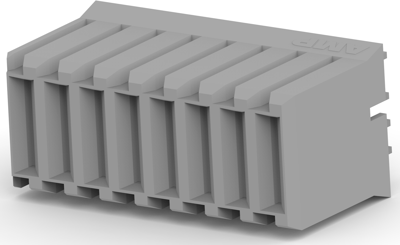

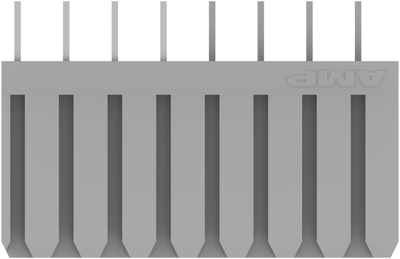

Socket header, 8 pole, pitch 3 mm, straight, gray, 120953-5
Order No.: 36P9644
EAN: 4099889950601
MPN:
120953-5
Unit Price (€ / pc.)
11.8167 € *
Available: 0 pcs.
Available in 5 Days: 46 pcs.
Leadtime: 9 Weeks **
Total Price:
11.82 € *
Price list
Quantity
Price per unit*
23 pcs.
11.8167 €
46 pcs.
9.9365 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 120953-5, AMP
Board-to-Board, Printed Circuit Board, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: High Current Copper Alloy
- Housing Material: Polyester GF
- Housing Color: gray
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Rated current: 16 A
- Centerline (Pitch): 3 mm
- Sealable: No
Technical specifications
| Connection | press-fit | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | gray | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 150 V | |
| Rated current | 16 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 3 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
