1445049-6 | AMP

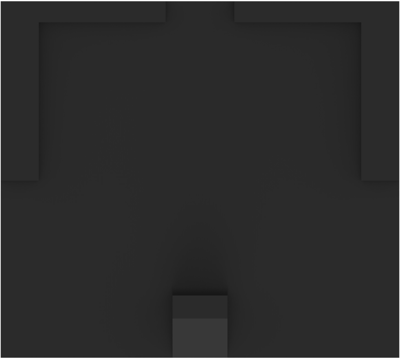

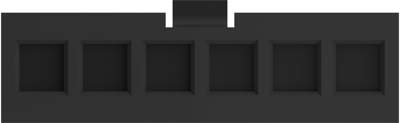

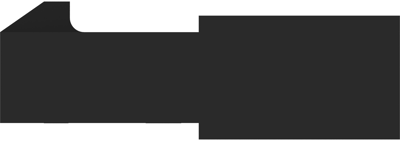

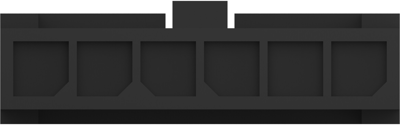

Plug housing, 6 pole, pitch 3 mm, straight, black, 1445049-6
Unit Price (€ / pc.)
0.2868 € *
Available: 0 pcs.
Available in 5 Days: 870 pcs.
Leadtime: 20 Weeks **
Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.
3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.
Male connector housings, single-row, bare, type 0-144.
Made of Nylon, flame retardant to UL 94 V-0.
Technical attributes (type, number of poles, length): 0-1445049-6, 6polig, L 18,85 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Nennspannung | 250 V | |
| Nennstrom | 5 A | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 3 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
