1534075-4 | AMP

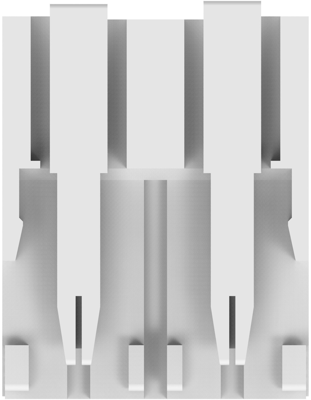

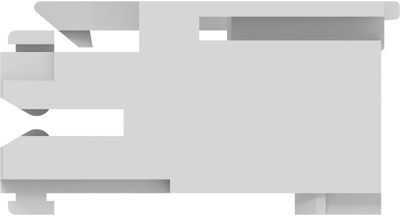

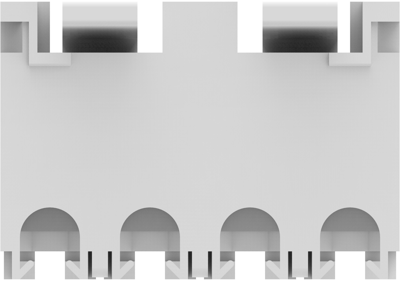

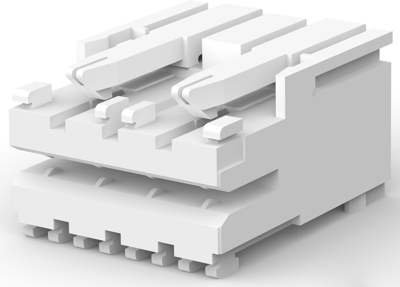

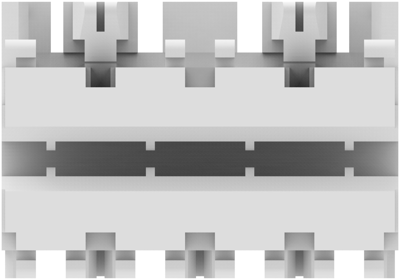

Socket header, 4 pole, pitch 5 mm, straight, natural, 1534075-4
Order No.: 35P4004
EAN: 4099889932188
MPN:
1534075-4
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 1534075-4, AMP
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 6.6
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -40 – 130 °C [-40 – 266 °F]
- Rated current: 6 A
- Centerline (Pitch): 5 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | natur | |
| Kontaktart | Buchse | |
| Nennspannung | 150 V | |
| Nennstrom | 6 A | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
